Installing a single or dual lever mixer tap on a kitchen sink or worktop should be a quick and easy task. You just need to disconnect the water supply and screw in the fittings; you may also have to drill into the worktop or sink using a hole saw. Follow our guide to find out how to change your kitchen mixer tap.

Important features

  • Preparation
  • Assembling the mixer tap
  • Installation
  • Connecting and testing
Shop all our kitchen taps

Kitchen taps: quick and easy installation

Kitchen taps are fitted over your sink and are responsible for supplying cold and hot water for all your cleaning or rinsing needs. Available in a variety of styles, including dual lever or single lever mixer taps, kitchen taps can also be fitted with different accessories such as sprayer attachments. Kitchen taps are generally fitted into a single hole directly on the sink top. It is, however, possible to find wall-mounted taps which feature a separate lever or tap. No matter if you intend to install a new sink or replace an old one, putting in a kitchen tap should be a quick and easy task.

Steps

  1. Preparation

  2. Assembling the mixer tap

  3. Installation

  4. Connecting and testing

Explore the ManoMano catalog
Sinks

1. Preparation

1. Preparation

Start by shutting off the water supply and turning on several taps to drain the system.

Replacing an old tap

Replacing an old tap

If the goal is to replace your tap, make sure that the new model is compatible with the hole already in your sink or worktop.

Taps are generally designed to fit in a hole with a diameter of either 40 or 45 mm.

Next, remove the old tap.

  • Unscrew the two flexi tails and mark the hot water hose

  • Unscrew the tightening seal underneath the tap

  • Remove the tap

Installing a tap in a worktop

Installing a tap in a worktop
  • Using the size of the tap body, find the most central point on the worktop.

  • Pre-drill a hole measuring 4 to 6 mm in diameter.

  • Use a drill equipped with a hole saw bit to drill a circular hole to match the exact dimensions of the new mixer tap.

  • Sand down the edges of your hole with a piece of sandpaper.

For a clean result, you can apply tape to the worktop before using the hole saw in order to avoid scratching the surface.

Explore the ManoMano catalog
Hole saws

2. Assembling the mixer tap

2. Assembling the mixer tap

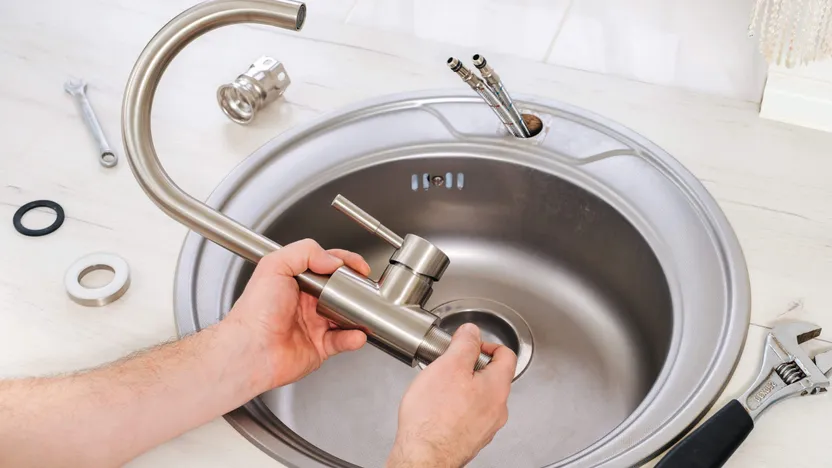

  • Start by screwing the two flexi tails into the tap body by hand. These are usually equipped with rubber washers. To be safe, you can do an extra quarter turn with an open ended spanner or a pair of pliers.

  • Next, insert the threaded rod into the tap using a flathead screwdriver and tighten.

  • Finish by inserting the seal.

3. Installing the new tap

3. Installing the new tap
  • Clean and degrease the spot where the mixer tap will go.

  • Insert it into the slot, being careful not to kink the flexi tails.

  • Position the washers and the tightening seal from beneath the sink. Next, screw everything together firmly.

  • Before tightening all the way, it's important to be absolutely certain that the tap is facing the right direction.

Connecting a mixer tap usually consists in simply screwing the flexi tails to the water supply pipes, being careful to connect the hot and cold water lines to the right pipes.

Using compression fittings for welded systems

Install compression fittings

If they do not fit, you will need to add reducer connectors to match the diameter of the pipe. That said, these instances are quite rare as modern systems are generally standard in size. However, you may sometimes find that the tap you want to replace has copper pipes that have been soldered to the faucet. If so, here's what to do:

  • Cut the copper pipes to size with a metal saw;

  • Sand, deburr and degrease;

  • Measure the outer diameter of the copper pipe and fit a coupler to connect the pipes to the supply hoses;

  • Tighten the fitting and connect to the water supply pipes, adding PFTE tape to create a stronger seal.

Explore the ManoMano catalog
PFTE tape

4. Connecting and testing the new tap

4. Connecting and testing the new tap
  • Once everything is connected, turn the water supply back on and test the hot and cold water.

  • If nothing leaks and you are able to change the water temperature by moving the lever, then your mixer tap has been successfully installed!

How to install a kitchen mixer tap

Required skills

Required skills

If you're installing a new sink, you may have to use a drill with a hole saw bit to form the hole for the tap. If your pipes are welded, you may have to trim down the hot and cold copper pipes and add a couple of compression fittings to screw in your new flexi tails. If you are installing a tap into a new worktop you will need a high-precision cut. Generally speaking, you will also have to use a socket set or spanner, and apply a Teflon tape seal.

Completion time

Required time

From 30 minutes to 1 hour

Number of people required

Number of people required

1 person

Tools and equipment

  • A single lever tap with flexi tails and washers;

  • Two compression fittings (if necessary);

  • A set of open ended spanners or socket set;

  • A flathead screwdriver;

  • A washing-up bowl and cloth;

  • A torch or headlight;

If installing a tap in a worktop:

  • A drill;

  • A hole saw drill bit;

  • Sandpaper;

Additionally, if you have to cut your copper pipes you'll need:

  • A metal saw;

  • Two compression fittings (matching the pipe diameter, male or female);

  • File.

Safety and workwear

Personal protective equipment (PPE)

This is a non-exhaustive list; be sure to choose the appropriate safety and workwear for the job at hand.
