If you are an occasional DIYer and the only thing you're going to cut in the space of a year is a sheet of 12 mm plywood, choose a 500 watt jigsaw with a depth of cut of 60 mm. If you're looking for a tool for a one-off job, a basic or an entry-level model is all you need. If possible, choose a model with a 1-year standard exchange warranty.
If you're planning to use your jigsaw for regular jobs such as fitting a kitchen, laying parquet flooring or installing fitted wardrobes, then look for a 700 watt jigsaw with a depth of cut of 90 mm in wood, 30 mm in non-ferrous metals and 10 mm in sheet steel. Orbital or pendulum action, a 45° blade setting and variable speed settings will all prove to be useful. It is also advisable to choose a model with a metal or laser cutting guide and a vacuum attachment. Consider at least a mid-range model with a warranty of 1 or 2 years.
If you are a regular professional user looking for a top-of-the-range tool, choose a jigsaw with a power rating of at least 700 W, ergonomic handles and an extraction system for greater user comfort. High-end tools should offer orbital or pendulum action, a fast blade-change system, a high stroke rate (approx. 2,900 strokes/min), a 45° blade setting and a cutting capacity designed to easily cope with 135 mm of wood, 10 mm of steel and 20 mm of aluminium. Choose a model from a well-known brand, with a 2- or 3-year extended warranty.

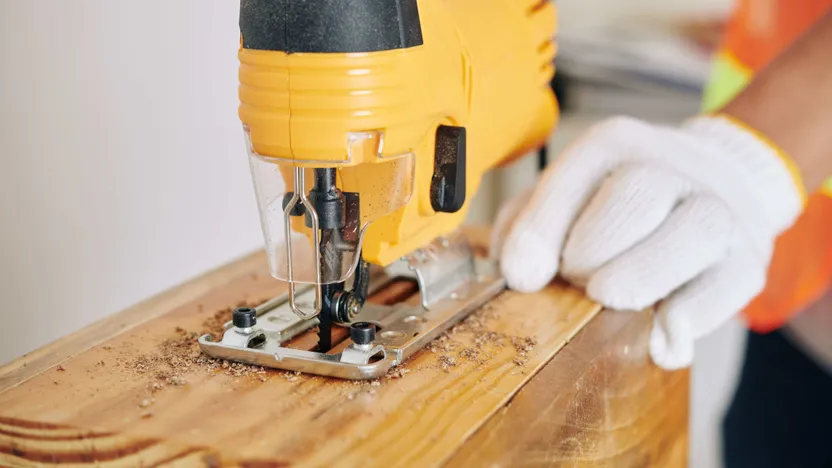

Jigsaws are hand-held power saws. They are lightweight (less than 3 kg) and are used for cutting wood, non-ferrous metals and composite materials such as chipboard and plywood.
Jigsaws are designed for making both straight and curved cuts at 90° or 45°. To ensure a sharp and clean cut, they are best reserved for cutting relatively thin materials. A circular saw will, however, be much better suited to edging work or making a large number of straight cuts. Circular saws are more powerful and have a wider blade, meaning that they cut through wood more easily and give a better finish.
Lightweight and easy to handle, jigsaws have a depth of cut of between 45 mm and 100 mm. Nonetheless, it should be noted that the quality of the cut will be better on thinner materials. Most jigsaws are corded, although some battery-operated models are available.
The power rating of a jigsaw determines the type and thickness of the materials it is designed to cut. Jigsaw power ratings typically range from 350 to 850 watts, allowing you to cut through pieces of wood and parquet boards with a thickness of 130 mm, and steel sheets with a thickness of 10 mm. The higher the power rating, the easier it will be to cut these materials. As you might expect, the weight of a jigsaw is proportional to its power rating, and ranges from 1.5 to 3 kg. When choosing a jigsaw, you therefore need to consider what you want to use it for:
350 W: small DIY projects, less efficient performance and lower depth of cut;
500 W: usually allows for a depth of cut of 60 to 70 mm in wood, 5 mm in steel, and 10 mm in aluminium;
700 W: can cut to a depth of 100 mm in wood, 10 mm in steel and 30 mm in aluminium;
850 W: offers the same depth of cut as a 700 W model but is more comfortable to use.
Jigsaws with variable speed settings allow you to adjust and regulate the cutting speed of the tool. This is useful if you need to cut fragile materials with different types of material or density. For the best results, it is important to choose the right cutting speed for the material in question, and to use the appropriate jigsaw blades.
There are three broad cutting speed bands:
Slow – 500 to 1,000 strokes/minute: for ceramics, wall tiles or glass;
Medium – 1,500 to 2,000 strokes/minute: for plastics and non-ferrous metals;
Fast – greater than 2,000 strokes/minute: for wood.
An orbital action recreates the natural motion of manual sawing. The blade of the jigsaw swings back and forth, moving forward on the up stroke, and back on the down stroke. This orbital action allows for better extraction of sawdust, increases cutting accuracy, and reduces blade wear. The only disadvantage is that the orbital action causes splintering and is therefore not recommended if you are sawing fragile materials or using a down-cutting blade.
Depending on how you intend to use your jigsaw, you might want to look for some of the following features to make your job easier:
Tool-less blade change system – just one click and the blade is mounted. No need for an Allen key!
A dust extraction system to keep your working area free of sawdust and chips. Some jigsaws have a built-in filter, others connect to a vacuum cleaner.
Integrated dust blower for improved cutting line visibility;
LED light to illuminate the cutting area for added convenience;
Parallel cutting guide or laser guide to reduce blade deviation;
A lightweight, rigid, smooth-running alloy or steel baseplate;
Tilting baseplate for accurate cutting at angles up to 45°;
Chip guard which surrounds the blade to reduce chipping – useful for laminates;
Top handle or barrel grip handle: most users find the first type more comfortable, but the second allows for more accurate cutting;
Blade storage compartments on the plastic casing so that your blades are always at hand;
Cordless model for greater manoeuvrability (but also less power and operating time). The type of battery you choose is also important.
Pneumatic model: lightweight and powerful, but requires a compressor, and the hose may get in the way.
The cutting quality of your jigsaw greatly depends on the blade. There are many different types of blade, each designed for a specific job. The factors to take into account include:
Materials to be cut – metal, wood, plywood, aluminium, ceramic, etc.;
Type of cut – straight, curved, V-shaped, scroll, etc.;
Tooth type and cutting speed – large tooth, fine tooth, reverse tooth blades;
Thickness of materials to be cut – blade length;
Blade material – steel, carbide, diamond-tipped, bimetallic, High Speed Steel (HSS)
Mounting type – T-shank, U-shank.
Each blade is designed for a specific purpose, so it's a good idea to equip yourself with several different jigsaw blades. You can also buy sets of jigsaw blades which cover 90% of most users' needs, so this can be a good compromise if you're not sure which blades you need. Above all, remember to replace your blades as soon as they are worn. A blunt blade will never produce a great cut, no matter how powerful your jigsaw! When cutting chipboard and melamine it is advisable to apply a strip of adhesive tape along the cutting line and – even more importantly – to make sure you select an appropriate speed and type of blade (fine tooth, in this case).
