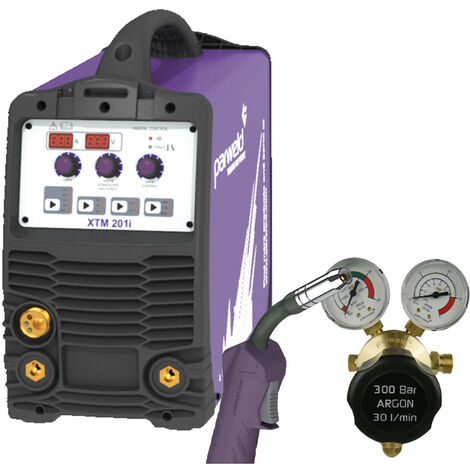

Parweld XTM 201I MIG Inverter Welder Package

Parweld XTM 201I MIG Inverter Welder Pack Package

The smooth DC output ensures excellent arc characteristics. Materials up to 4mm can be welded with ease. The arc voltage is infinitely adjustable providing exact settings of the welding parameters. Lightweight construction means the machine is very portable and the removable euro connection torch makes for easy transport and storage. The dual digital display allows all the welding parameters to be displayed, the welding voltage is displayed constantly and the second display can be toggled between the wire speed and the welding amperage. Wire sizes of 0.6 – 1.0mm can be welded with ease.

The XTM 201I is able to cope with inputs which fluctuate by +/-15% and can be used with the majority of generators.
The machine is housed in a metal case with integrated carry handle.
Lightweight, portable MIG Inverter machine, suitable for light industrial manufacturing, maintenance repair, training, agricultural and DIY, sheet metal work and site welding.

XTM 201I Features

• 230V Single Phase
• 200A @ 25% Duty Cycle
• Compact and portable
• Dual digital display
• Accepts 5kg (200mm) spools
• 2T/4T trigger latching, separate button
• 3 years return to base warranty
• Manufactured to IP23S, ISO/IEC 60974-1, ISO/IEC 60974-6 and RoHS Compliant

XTM 201I Specification

• Input voltage: 230V 1 phase
• Input current (Eff): 18A
• Maximum current: 200A DC
• Voltage: 18 - 26.5V
• Duty cycle: 200A @ 25%
• Min Fuse rating: 16A
• KVA: 10.35
• Generator: 7 KVA (requires AVC)
• Feed box : 2R
• Wire feed speed (m/min): 2-18
• Spools (mm): 100 (1kg) 200 (5kg)
• Wire size: 0.8 - 1.0mm
• Enclosure protection: IP23S
• Power source (mm): 469 x 223 x 421
• Weight (kg): 15.5

What is included:

• Package with Mig Torch and Regulator
