Product information

Description

General description

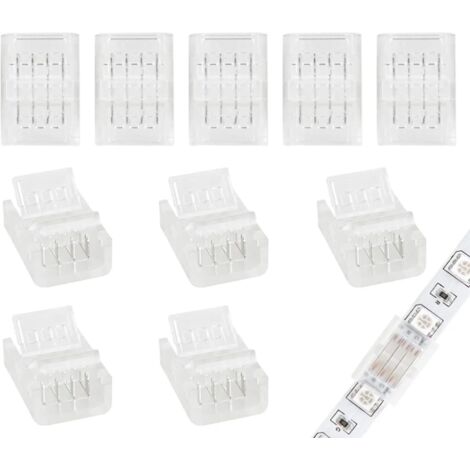

This 10 Pack 10mm 4 Pin LED Strip Connectors kit is designed for connecting 10mm wide waterproof and non-waterproof WS2812B/WS2812/WS2811 RGB LED strips. It allows you to extend your LED lights effortlessly to any desired location.

Technical specifications

Rated voltage of connectors: 0-36V

Rated current of connectors: 0-5A

Rated voltage of extension wire: 0-300V

Rated current of extension wire: 0-2A

Installation

Wire End Connection: Insert the connecting wire into the wire end of the connector and press down.

Light Bar End Connection: Align the front of the 4 solder joints on the light bar with the 4 metal pins on the connector, and then close the cover.

Usage

Connect your LED lights perfectly and extend them as needed.

Other information

Premium Material: Made of multiple copper cores wrapped in upgraded PVC material for high conductivity, low resistance, and anti-corrosive properties.

Durable connectors made of PC material and tinned copper, ensuring transparency and aesthetic appeal.

Packing List: 10 x 4-pin connectors, screwdriver included.

Features

Brand
TINOR
Pcs per pack
10
Colour
Transparent
Height
10 mm
Width
10 mm
Material
Copper
Type of connection
Screw-in
ManoMano Reference
ME94203168
MMID
603502551866
Product code
TiR-UK-06054
EAN
8420468945064

10 Pack 10mm 4 Pin LED Strip Connectors for 10mm 5050 3528 RGB LED Strips, Screwdriver Included (Connecting LED Strips and Tapes)
