Product information

Description

General description

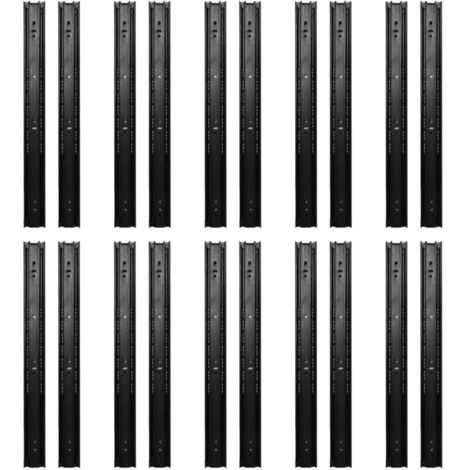

These 10 pairs of 3-section drawer slides are designed for heavy-duty use, with a maximum load capacity of 100 pounds. They are ideal for home and office applications, providing smooth and reliable operation for heavy drawers.

Technical specifications

Width: about 45 mm / 1.8 in

Maximum load: 100 lb

Material: Cold rolled steel, double-row solid steel balls

Material thickness: about 1.2 mm / 0.05 in

Surface treatment: Electrophoretic black

Installation

Open the package and remove the inner rail from the main body of the drawer slide rail.

Install the outer rail and the middle part of the split slide rail on both sides of the drawer case.

Install the inner rail on the drawer side panel. If using finished furniture, pre-punched holes will be available; otherwise, you will need to drill them yourself.

Assemble the drawer as a whole during installation.

Ensure that the left and right slide rails are in the same horizontal position.

Fix the inner rail to the length of the drawer cabinet with screws at the measured position.

Tighten the corresponding screws on both sides, ensuring the inner rails remain horizontal and parallel.

After installation, pull out the drawer to check for smooth operation and make adjustments if necessary.

Usage

These drawer slides are suitable for heavy drawers in home and office settings.

They allow for full extension, making it easy to access items stored in the back of the drawer.

Features

Brand
YMYNY
Pcs per pack
10
Material
Steel
Maximum load
45 kg
Drawer component
Slide rail
Colour
Black
Total width
45 mm
Drawer slide type
Ball bearing
ManoMano Reference
ME94091082
MMID
310064717115
Product code
XHWD-M-XXW-9425
EAN
6095973133330

10 Pairs 3 Section Drawer Slides Extension Large Load Bearing Rail for Home Office 18 Inch MUMU
