Product information

Description

General description

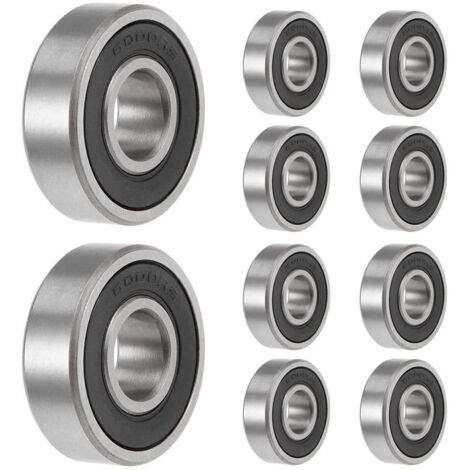

10 pcs of 6000-2RS Rubber Sealed Deep Groove Ball Bearings, measuring 10x26x8mm, designed for durability and smooth operation. These bearings are made from high-quality steel, ensuring resistance to rust and corrosion, while providing noise reduction and an extended service life.

Technical specifications

Inner Diameter: 10mm

Outer Diameter: 26mm

Width: 8mm

Manufacturing Accuracy: Grinding dimension and geometric accuracy based on unit μM

Load Capacity: Built-in steel ball maintains shape under load

Compatibility and accessories

These deep groove ball bearings are suitable for various applications including trolleys, gearboxes, instruments, motors, household appliances, internal combustion engines, transportation vehicles, agricultural machinery, construction machinery, engineering machinery, roller skates, and tools.

Installation

Swage fitting: The bearing can be press-fitted onto the shaft using a press, followed by loading the shaft and bearing into the bearing seat. A soft metal assembly sleeve should be padded at the end of the inner ring during press-fitting.

Heating fit: This method utilizes thermal expansion to create a loose fit by heating the seat or race.

Usage

These bearings are ideal for applications involving radial loads and moderate axial loads, making them suitable for low-power motors, car and tractor housings, machine tools, and general machinery.

Other information

Rubber seals effectively prevent the intrusion of sand, dust, water, and other foreign objects, enhancing the bearing's service life.

Low noise operation with a high limit speed due to a low friction coefficient.

Features

Brand
TINOR
Inside diameter
10 mm
Pcs per pack
10
Outer diameter
26 mm
Material
Steel
Type of bearings
Bearing
ManoMano Reference
ME94201033
MMID
155655523329
Product code
TiR-UK-06925
EAN
8420468953779

10 pcs 6000-2RS Rubber Sealed Deep Groove Ball Bearings 10x26x8mm Deep Groove Ball Bearing 6000-2RS
