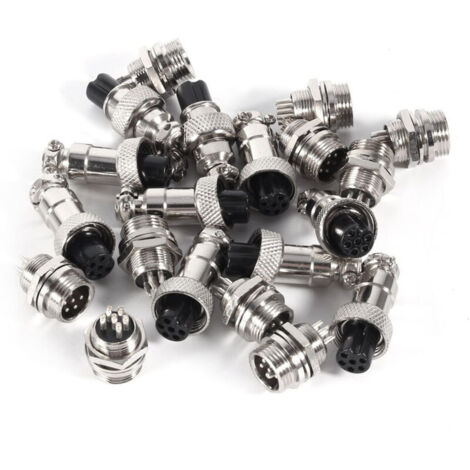

10 Set GX12 6Pin 12mm Aviation Plug Male Female Metal Socket Connector
Of which environmental contribution £0.01 including VAT.
Sold by Sinocor GmbH
You may also like
Compare with similar items
Product information
Description
1. 100% brand new and high quality aviation connector power plug
2. Uses bakelite as insulation
3. Lifespan can reach 500 cycles, durable
4. Widely used in data acquisition systems, inclinometers, computer automation measurement and control systems, and mechanical applications
5. Equipment, Audio/Video, Communications, Automotive, and Other Industries
100% Brand New High-Quality Aviation Connector Power Plug
Uses Bakelite Insulation
Lifespan can reach 500 cycles, durable
Widely used in data acquisition systems, inclinometers, computer automation measurement and control systems, mechanical equipment, audio/video, communications, automotive, and other industries
Details:
Installation Type: Thread Clamping
Screw Head Diameter: 12mm / 0.47"
Dimensions: 45x15mm/ 1.8"x0.59" (LxDia)
Housing Material: Zinc, Nickel Plated
Knurled Nut: Brass, Nickel Plated
Rated Voltage: 300V
Rated Current: 5A
Contact Resistance: Not more than 5 Ω
Insulation Resistance: Under normal conditions, not less than 500MΩ, after a constant hot test of at least 20MΩ
Color: Silver
Type: 6-pin
Quantity: 10 sets
Note:
The color of the item may vary slightly due to photography and your own computer monitor.
Package Included:
10 sets of Aviation Power Connectors
