1000L Tank Tap Adapter DN50 (75mm) IBC Tank Fitting Drain Valve IBC Tank Adapter IBC Tank Connector Butterfly
You may also like
Compare with similar items
Product information
Description
General Description

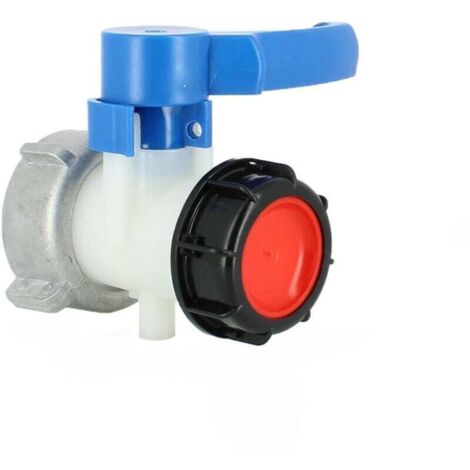

The 2-inch butterfly tank valve with Ø75 mm inlet and swivel nut is designed to fit 1000-litre brand tanks, allowing an S60X6 outlet. This accessory is ideal for rainwater harvesting.
Technical Specifications
Type: 2-inch butterfly valve
Material: High-density polyethylene (HDPE)
Inlet thread: Ø75 mm (Schütz compatible, S75X6)
Outlet thread: Male S60X6 (Ø60 mm, wide thread)
Swivel nut
Seal: EPDM
Operating temperature: -20℃ to +70℃
Operating pressure: <0.15 MPa (tested at 0.2 MPa)
Durability: 3000 cycles
Compatibility and Accessories
Compatible with 1000-liter tanks of the brand
Adaptable to all parts in our shop thanks to the S60X6 outlet thread
Installation
To install the valve, Ensure that your tank outlet is fitted with an S75X6 thread. Also check that your current valve has an aluminum ring with an inner diameter of 70-75 mm. If your valve is welded to the tank, replacement will not be possible. Application: The valve is used to control the liquid outlet from tanks, preventing splashing. It is particularly suitable for rainwater harvesting applications.
Features
- BrandTEHTUY
- ColourBlack
- Pcs per pack1
- Suitable for drinking waterYes
- Connection configurationMale
- Fitting diameter75 mm
- Height1 cm
- Width1 cm
- Length1 cm
- MaterialHDPE
- Operating pressure1.5 bar
- Max pressure1.5 bar
- Frost resistantYes
- Type of accessory for tankFaucet
- Tank output typeFaucet
- Volume1000 l
- ManoMano ReferenceME98941783
- MMID727954104446
- Product codemano-HWLX-06644
- EAN6282768358072
