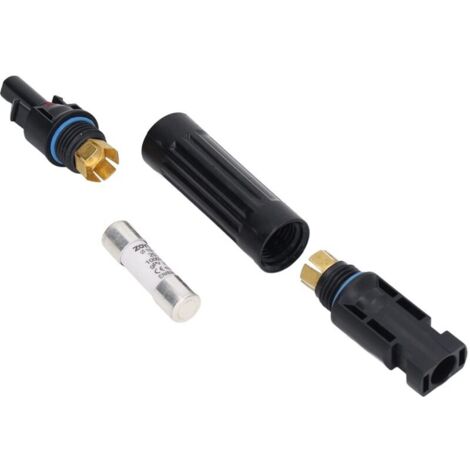

1000V 20A Solar PV Fuse Connector, Solar Diode Connector, IP67 Waterproof Fuse Holder for Solar Panel Connection
Of which environmental contribution £0.01 including VAT.
Sold by Sinocor GmbH
You may also like
Compare with similar items
Product information
Description
Main Application: This connector offers excellent protection for your solar panels, solar controllers, and other devices in your PV system. Once the fuse's rated current is exceeded, it will quickly cut the circuit to prevent damage.
PPO, Tamiya Copper Material: Adopting a PPO housing and tamiya copper conductor, this connector has a high load capacity, is durable, and reliable in the long term.
Convenient Design: The connector features an internal reed button type contact and insertion, a simple yet very practical structure!
Easy to Use: This connector is compatible with PV cables of different insulation diameters and almost all solar connectors, with multiple plug-in and plug-out cycles.
IP67 Waterproofing: The IP67 waterproof rating allows you to use the PV solar connector in harsh outdoor environments. Use it with confidence!
Item Type: PV solar connector
Material: PPO, tam copper
Rated Current: 20A
Rated Voltage: 1000VDC
Ambient Temperature: -40 to +90°C
Protection Class: IP67
Socket Contact Resistance: 0.5mA
Contact Material: Tam copper
Locking System: Plug type
Flame Class: UL94 HB, UL94 VO
Cable Size: Approx. 2.5mm / 0.1inch, 4mm / 0.16inch, 6mm / 0.24inch
Diode, fuse: Schottky diode, PV fuse
Package list:
1 x PV solar connector
/>
PPO, Tamiya Copper Material: Adopting a PPO housing and tamiya copper conductor, this connector has a high load capacity, is durable, and reliable in the long term.
Convenient Design: The connector features an internal reed button type contact and insertion, a simple yet very practical structure!
Easy to Use: This connector is compatible with PV cables of different insulation diameters and almost all solar connectors, with multiple plug-in and plug-out cycles.
IP67 Waterproofing: The IP67 waterproof rating allows you to use the PV solar connector in harsh outdoor environments. Use it with confidence!
Waterproof PV solar connector, PV solar fuse holder, 1000V photovoltaic solar connector, PV solar fuse connector, inline fuse connector, solar diode connector
Specification:Item Type: PV solar connector
Material: PPO, tam copper
Rated Current: 20A
Rated Voltage: 1000VDC
Ambient Temperature: -40 to +90°C
Protection Class: IP67
Socket Contact Resistance: 0.5mA
Contact Material: Tam copper
Locking System: Plug type
Flame Class: UL94 HB, UL94 VO
Cable Size: Approx. 2.5mm / 0.1inch, 4mm / 0.16inch, 6mm / 0.24inch
Diode, fuse: Schottky diode, PV fuse
Package list:
1 x PV solar connector
/>
Features
- BrandTEHTUY
- Length1 cm
- Width10 mm
- Height10 mm
- Weight100 g
