10Set 30A 1000V Solar Panel Connectors Flame Retardant 100V Male Female Solar Panel Cable Connectors
You may also like
Compare with similar items
Product information
Description
1、High Level of Waterproof and Dustproof: IP65 waterproof and dustproof solar connector makes it very suitable to withstand extreme weather conditions and high humidity.
2、Corrosion Resistant and Ultraviolet Proof: The corrosion resistant and ultraviolet proof PC and PA materials ensure 30A solar connector stable transmission and can be used for a long time.
3、ABS Material: Solar panel male female connectors are made of ABS material, fine workmanship makes it durable, not easy to damage, and greatly extend the service life.
4、Easy to Use: The stable self locking system is easy to lock and open, and the assembly process is simple.
5、Lightweight and Small: The lightweight and small size allow you to put it in your carrying bag, easy to carry and store.
Item Type: 30A 1000V Solar Panel Connectors
Product Material: ABS
Color: As Pictures Shown
Weight: Approx. 202g / 7.1oz
Working Current: 30A
Withstand Voltage: DC 1000V
Contact Resistance: ≤0.5mΩ
Insulation resistance: ＞ 500mΩ
Applicable Single Core Cable Section: 1.5mm² to 6mm²
Cable Outer Diameter Range: 5mm to 7mm
Ambient Temperature: -40 ℃ ~ +105℃
Protection Grade: IP67
Safety Level: II
Insertion Force: ≤ 50N
Pullout Force: ≥ 50N
Flame Retardant Grade: UL94-VO
Terminal Connection Mode: Crimping
Product Size: Approx. 8.7x2x2cm / 3.4x0.8x0.8in (Connected Size)

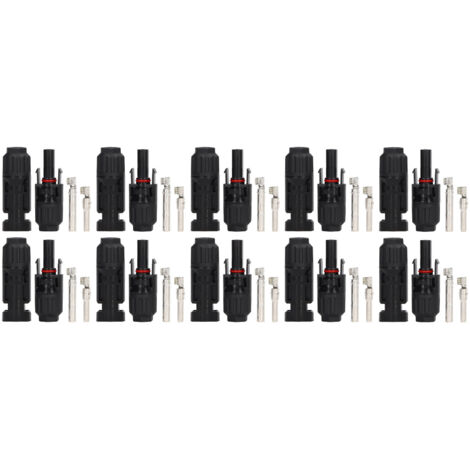

10 x Male Connector
10 x Female Connector
20 x Accessories
Features
- BrandSTUNACY
- Connection configurationFemale
- ManoMano ReferenceME212205918
- MMID374913505950
- Product codeST0417-YM41782
- EAN1124278985520
