Product information

Description

General description

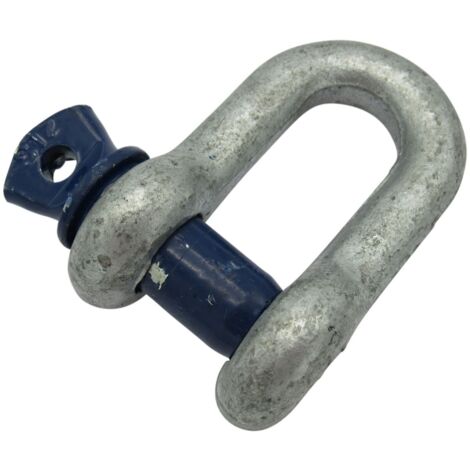

12 Ton Dee Shackle with Screw Pin is designed for heavy lifting applications, capable of handling a safe working load of 12 tonnes (12000 kg). This shackle is manufactured through a drop forged process, ensuring durability and strength. It features a hot-dipped galvanized body finish and a painted pin finish, providing resistance to corrosion and wear. The design is compact and efficient, making it suitable for various lifting tasks.

Technical specifications

  • Product Code: SFUSSPD12
  • Product Weight: 4.11 kg
  • Safe Working Load: 12 Tonnes
  • Safety Factor: 5:1
  • Dimensions: A: 33 mm, B: 35 mm, C: 100 mm, D: 52 mm, E: 76 mm
  • Manufactured Process: Drop Forged
  • Body Finish: Hot Dipped Galvanised
  • Pin Finish: Painted
  • Conforms to: BS EN 13889: 2003 + A1: 2008
  • US Federal Specification: RR-C-27IDIV

    • Other information

  • Test Certificate Supplied (Sent Via Email)
  • Chain shackles are also known as D-shackles, characterized by their "D" shape design.
  • Note: Colour may vary from the picture.
