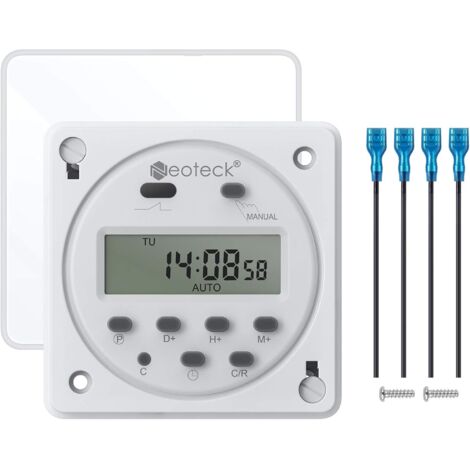

12V 16A Socket Digital Programmer 16 Programs Programmable Clock Timer Electrical Outlet with LCD Digital Display Anti-Theft with Waterproof Case/Terminal Block Set

【12V Programmable Timer】Our product not only adds a set of connection terminals, you don't need to buy external terminals or solder wiring when installing, but also adds a waterproof case, dustproof and waterproof. It can be installed even outdoors. More convenient and easy for your life and use.

【Multiple Intelligent Control】This Digital Programmable Socket can set up to 16 switching programs. Each program can be set to run 1 to 16 cycles per day or per week or on the same day. The time range for each program is between 1 minute and 168 hours. You can turn your device on and off regularly to keep it running and extend its service life. (Set the time to local time before use).

【Data Storage Function】Built-in lithium battery, with power-off memory function. Data can be saved for 60 days even after a power failure, without resetting the fixed switching program.

【Automatic Time Correction】 Automatic time correction ±60 seconds, change the AC power supply once a week (press the MANUAL key after setting the program and check whether the AUTO mode is enabled).

【Wide Usage】 It is suitable for timing control of electric lamps, advertising lamps, electrical boxes, drain pumps, water heaters, battery chargers, etc.

Product Description

Attention:

The user manual indicates "12V Scheme".

The "POWER" must be designed for 12V DC connection. Never connect another power supply. The other side can be as needed.

If you want to connect 110V electrical appliances. Wiring depends on "0-250V wiring diagram".

It doesn't matter what circuit diagram. "POWER" only allows 12V DC connection.

The power "~" is meaningless, the voltage to be measured is DC12V.

Advanced preset one week earlier.

Digital electronic timer with daily programs.

Repeat programs with 16 on/off settings and manual override.

Lithium battery power reserve in case of power failure.

Automatic timer error correction ± 60 seconds, every week.

DC switching current

Specification

Cut (MM): Φ64

Installation depth (mm): 21

Power consumption: 4.4VA

No-load current consumption: 0.015 mA

Resistive load (LVD .IEC) 16A / 110 AC

Inductive load cos. 0.6 8 A / 110 V AC

Incandescent lamp load:1000W

DC SWITCH: 16A DC

Operating accuracy: (+ -) Type 1 s / day

Ambient temperature: -10 ℃ - 55 ℃

Shortest switching time: 1 min

Shortest switching interval: 1 min

Number of channels: 1

Number of memory locations: 16

Connection type: Plug in

NOTE:

The time setting must match the chronological sequence, but cannot be set crosswise.

The system with automatically exit if no operation is performed within 10 seconds and no data is saved.

Function 3,4,5 cannot be used simultaneously

Tips:

Do not turn on after setting Power ON or No power off after setting Power OFF, please check whether "DAY" is correct or whether it needs to be readjusted.

After confirming that the time setting "ON" and "OFF" is correct, if it does not turn on or off at the time of setting, check whether another program is deleted. If not, press the "P" key to find the corresponding program, and then press the "C / R" key to delete the time program (Note: "-: -" means it has been deleted successfully).

After confirming that the above two points are correct, the on or off is not normal. Check whether it was set to the automatic position. Press the "" button to return to the current time, then press the "Manual" button until the screen displays "AUTO".

Bonus:

Waterproof cover

Suitable for outdoor installation, no need to worry about water and dust

Embedded cover

Can be embedded in the wall

Wiring connector

Wiring design, safe and convenient
