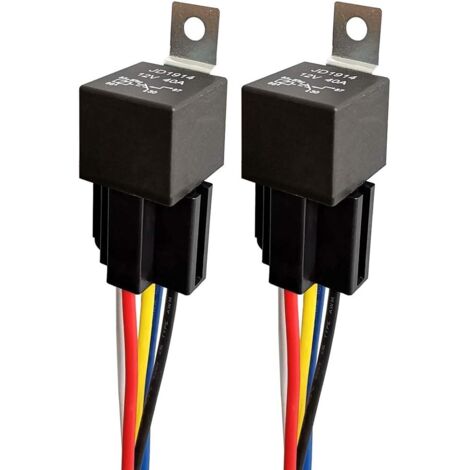

12V 40A Car Relay with Colored Wiring Harness, 5 Pin SPDT Relay for Motorcycle Truck Boat, Heavy Duty Switches and Starters, Waterproof, 2 Pack-

New SPDT (Single Pole Double Throw) relays with color-labeled wires

Minimum operating voltage of 8V, corresponding minimum operating current is 100mA; Standard operating voltage 12V, the corresponding standard operating current is 150mA.

Small size / Low power consumption / High contact voltage / High sensitivity

Contact material: Ag Alloy / Contact resistance: ≤ 100MΩ

Electrical life: 100,000 operations / Mechanical life: 10,000,000 operations

Product details:

Model: YCL-12V-C JD1914+YCST-01

Product features: large capacity, 40A switching current

Contact form: a set of transitions

Operating temperature: -40 to +125℃

Product use: automotive control device

Dimensions L*W*H (mm): 28.0*28.0*25.0

Contact Form: 1c

Contact Capacity: 1c: 40A 14VDC

Coil Voltage: 12VDC

Coil Power: 1.8W

Contact Resistance: ≤50mΩ

Insulation Resistance: ≥1.00MΩ

Life (times): Electrical 1*100000

Mechanical 1*10000000

Dielectric Withstand Voltage: 500VAC between open contacts

500VAC between coil contacts

Ambient Temperature: -40℃~+125℃

Installation form: quick connection type, plug type
