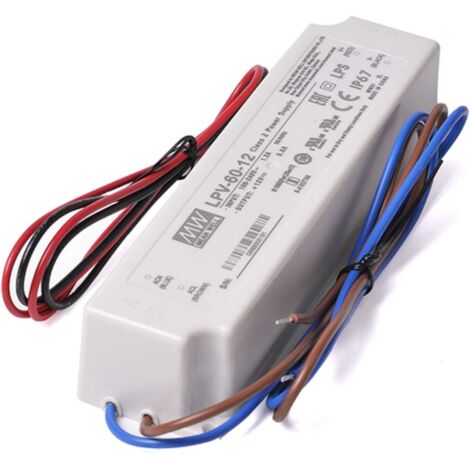

12V 60W 5A Power Supply High Quality Waterproof Ip67 Suitable for Outdoor Model MeanWell LPV-60-12 Transformer for 12V LED Strip
You may also like
Compare with similar items
Product information
Description
TRANSFORMER: LPV-60-12 / 60W DC 12V model Intended for professional and private use, even for outdoor use. Compact and durable body. Product pre-wired with outputs, cable and plug.
COMPATIBILITY: AC / DC transformer, power supply for low voltage electrical equipment such as LED strips, cameras or camcorders.
FUNCTIONALITY: Class 2 transformer, Constant Current 12V.
PROTECTION: Waterproof IP67, even for outdoor use. Protection against: Overvoltage, Short circuit, Overload and Overheating.
Model: LPV-60-12
Type: AC/DC power supply
Modulation method: Pulse width modulation (PWM) type
Transistor connection: Single-ended
Input voltage: 90-264 (V)
Output power: 60 (W)
Output voltage: 12 (V)
Work efficiency: 83 (%)
Output ripple noise: 120 mV
Output voltage accuracy: + -5 (%)
Voltage regulation rate: 123 (%)
Load regulation: +-2 (%)
Output Current: 5 (A)
Working Frequency: 47 ~ 63 (Hz)
Working Temperature: -30~+70 (℃)
Dimensions: 162.5 x 42.5 x 32 mm.
Power Phase Number: One-way bit
Input Voltage Range: 90~264VAC/127~370VDC
Number of Circuits: Single Circuit
Scope of Application: LED Strip Lights
Extended Function: Advertising Lights
Installation Method: Screw Installation
Protection Class: IP20
Instruction Manual
1. Unless otherwise stated, all specifications are measured at 230 VAC input, rated load and 25°C ambient temperature.
Features
- BrandTINOR
- Power60 W
- Output voltage12 V
- Power supply destinationTV
- Height4.25 cm
