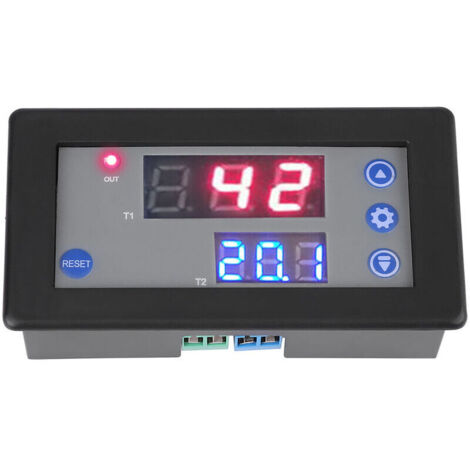

12V Time Delay Relay Module with Dual Cycle Timer and Digital LED Display

1. Timing range: 0-999 seconds, 0-999 minutes, 0-999 hours; three types are available for selection.

2. Function sets: delay, synchronization, cycle; 18 types of function combinations

3. The product can be used for synchronization, delay, cycle synchronization, intermittent synchronization, etc.

4. The product can be used as a synchronization switch and timer alarm control panel.

5. The maximum working current is 10A, the maximum power is 1500W. Specification: Features: Time range: 0-999 seconds, 0-999 minutes, 0-999 hours; three types can be selected. Function sets: Delay, synchronization, cycle; 18 types of function combinations. The product can be used for synchronization, delay, cycle synchronization, intermittent synchronization, etc. The product can be used as a timer switch and timer alarm control panel. The maximum working current is 10A, the maximum power is 1500W. Specifications: Product size: 3 x 9.7 x 5.2 cm / 1.1 x 3.8 x 2.0 inch

Time range: 0-999s / 0-999m / 0-999h

Maximum working current: 10A

Maximum power: 1500W

Voltage: DC 12V

Weight: 70g

Instruction manual:

Before using the first prompt, the user should note that a certain data set will be saved. After waiting 6 seconds, the memory module will automatically save the data set.

(1) Press the SET button to enter time setting mode. The digital tube will blink. Use the plus and minus buttons to adjust the T1 and T2 synchronization. After setting the time, wait 5 seconds. The module will then automatically save the settings. Remember to save. the data.

(2) Press SET to enter parameter setting mode. There are two sets of parameters allowing the user to select P0 and P1. In the current mode, briefly press SET to switch between P0 and P1. In P0, parameter P1 can be set for its own timer mode via key addition and subtraction.

P0--0: Sync mode is 0 to 999 seconds

P0--1: Sync mode is 0 to 999 minutes

P0--2: Sync when the pattern is 0 to 999 minutes

P1--0: Time delay relay T1 (time delay T1)

P1--1: Time delay relay T1 (time delay T1) trips

P1--2: Time delay relay after T1 (time delay T1), then the successor time delay T2 (electrical trigger) ends.

P1--3: Time delay relay T1 is released (time delay T1), then the successor time delay T2 (electrical trigger) ends.

P1--4: Time delay relay after T1 (time delay T1), then the successor time delay T2 (electrical trigger) repeats the cycle.

P1--5: Time delay relay T1 is released (time delay T1), then the T 2 successors under electrical power (time delay T 2), repeat the cycle.

Package included:

1 x time delay relay

Note: The data is measured manually, please allow an error of 1-59cm. Due to differences in light and screen, there will be some color difference; the actual product received shall prevail.
