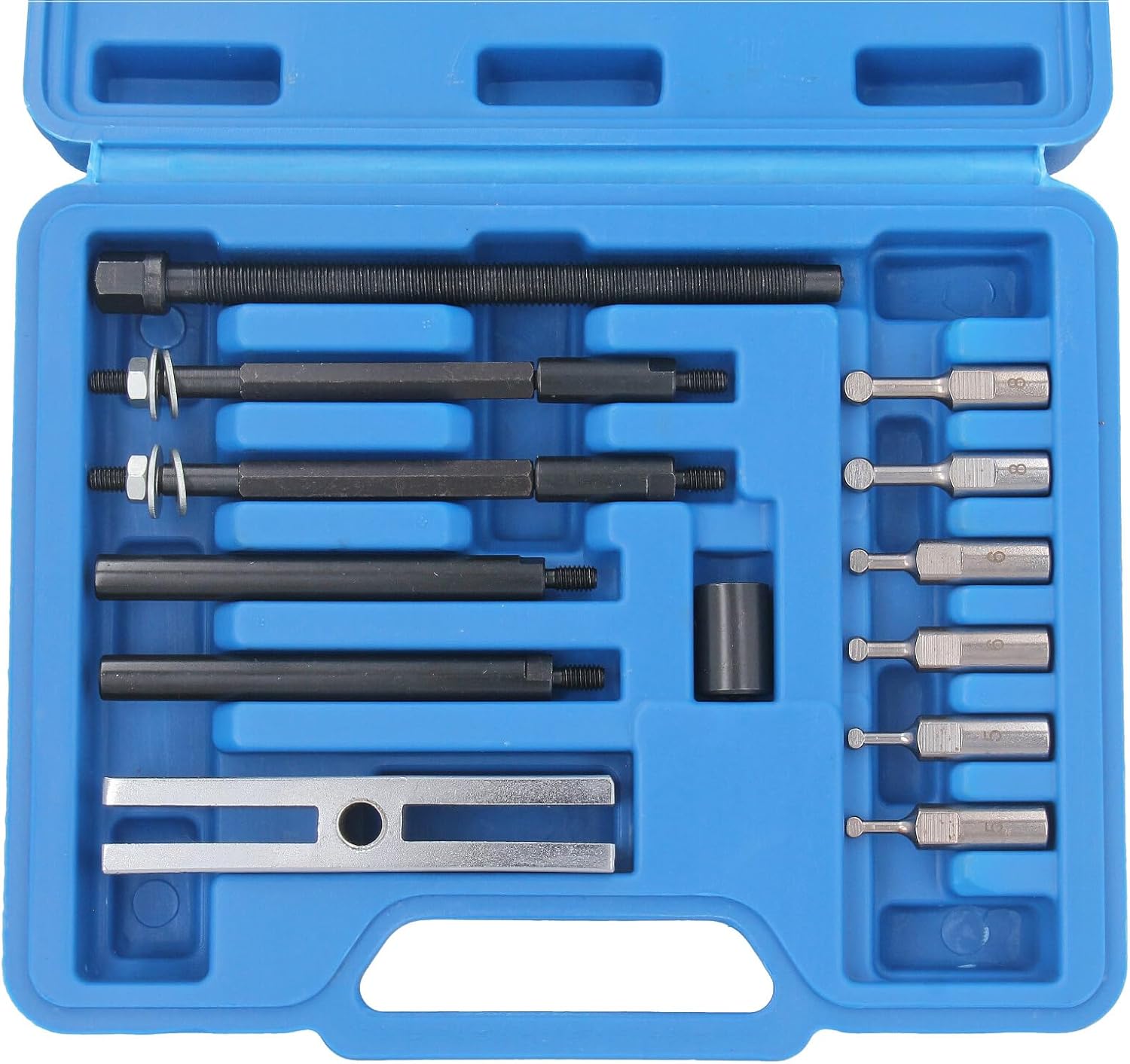

13-piece Bearing Removal Tool Set: Small Insert Bearing Puller, Bearing Separator, Mechanic's Tool

General Description

This 13-piece kit is a bearing removal tool designed to easily extract ball bearings integrated into the housing and mounted in a groove. Thanks to its versatile design, it allows bearings to be extracted without having to disassemble the machine or the shaft, while ensuring uniform movement of the outer and inner rings.

Technical Specifications

• Max. extraction depth: 200 mm
• 1 M10 x 130 mm threaded spindle
• 1 shaft and arm support (adjustable from 20 to 100 mm)
• 2 55 mm mounting arms
• 2 30 mm screw extensions
• 2 95 mm screw extensions
• 2 40 mm ball heads, 3 to 5 mm swivel head
• 2 40 mm ball heads, 4 to 6 mm swivel head
• 2 40 mm ball heads, 5-8 mm swivel head
• Positioning device for single-row deep groove ball bearings (FAG, SKF, INA, NTN, etc.)
