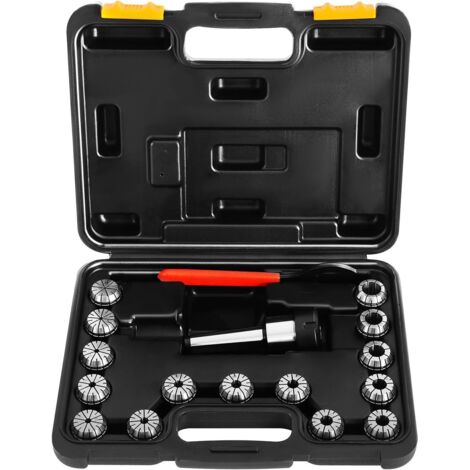

15Pcs Precision ER32 Spring Collet Set Morse Taper Collet Chuck Holder MT3 Shank Chuck & Spanner Box for Milling Lathe Machine

~~£79.99~~

£2Offered

To be applied on the payment page

Buying for your business?

Negotiated prices excl. VAT up to -20%

Create a pro account

Sold by DENCRESTUK

Product information

Description

General description

This precision spring collet set is made of high-strength materials to ensure superior clamping power and stability. It includes 15 collets that provide precise performance for both rough machining and fine engraving, making it an indispensable tool for artisans pursuing efficient craftsmanship.

Technical specifications

Mount Type: Freestanding

Assembly Required: Yes

Number of Collets: 15

Material: Metal, Spring Steel

MT3 ER32 M12 Collet Chuck Size: 13.8cm/5.43in

Spindle Drawbar Thread: M12*1.75

ER32 Clamping Range: 1-20mm/0.04-0.79in

Spanner Size: 212mm/8.35in

ER32 Spring Collet Length: 40mm/1.57in

ER32 Spring Collet Diameter: 32mm/1.26in

Inner Diameter Sizes: 3mm/0.12in, 4mm/0.16in, 5mm/0.20in, 6mm/0.24in, 7mm/0.28in, 8mm/0.31in, 9mm/0.35in, 10mm/0.39in, 11mm/0.43in, 12mm/0.47in, 13mm/0.51in, 14mm/0.55in, 16mm/0.63in, 18mm/0.71in, 20mm/0.79in

Combined Accuracy: 0.02mm/0.0008in

Storage Box Size: 34.5*27.5*9cm/13.6*10.8*3.5in

Package Size: 35*29*11cm/13.78*11.42*4.33in

Gross Weight: 3.7kg/8.16lbs

Net Weight: 3.4kg/7.50lbs

Compatibility and accessories

Includes 1 MT3 ER32 M12 collet chuck

Includes 15 ER32 collet chucks

Includes 1 spanner

Includes 1 storage box

Compatible with MT3 ER32 M12 special machine tools, CNC milling lathe tools, and work-holding engraving machines (not included)

Installation

Ensure the collet is assembled into the clamping nut (not included) before inserting it into the chuck.

Check the collet deviation before use; if it exceeds 0.0004 inches, correct it before cutting.

Usage

Suitable for various operations such as milling, drilling, tapping, and other relevant tasks.

Reduce spindle speed and depth of cut if abnormal vibration or sound occurs during cutting.

For extended collet use, reduce speed, feed rate, or cutting volume.

Other information

Anti-slip design increases grip and prevents workpiece loosening.

Easy to clean with a smooth surface and simple structure.

Storage box designed with suitable grooves for organizing collets and handles.

Comfortable handle on the BT ER extended bar for a better grip.

Please allow slight color differences due to lighting and 1-3cm measurement errors.

Features

Brand
CNCEST
Chuck diameter
32 mm
Material
Metal
Compatible drill
Magnetic drill
Weight
3400 g
Chuck tightening
Keyless self-tightening
Chuck
Morse taper shank
Insertion type
Morse taper shank
ManoMano Reference
ME94435678
MMID
968252700238
Product code
20211012321
EAN
756383487043
