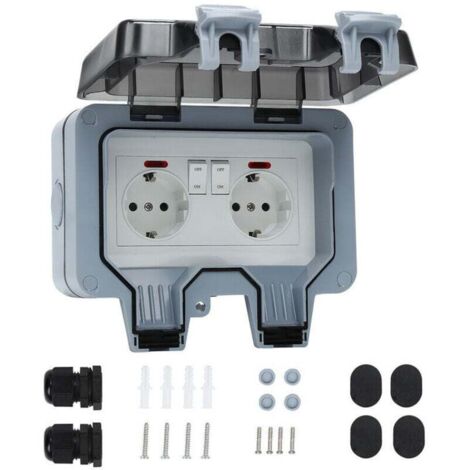

16A IP66 Waterproof Outdoor Socket, Double Power Outlet with Protective Shutter, Garden Wall-Mounted Power Strip, Dustproof and Windproof Socket with Switch and Indicator Light
You may also like
Compare with similar items
Product information
Description
General Description
This double weatherproof socket is designed for outdoor use with an IP66 protection rating, guaranteeing complete waterproofing and dust resistance. It features independent switches and indicator lights, and lockable covers provide added safety to prevent accidental opening, making it ideal for families with children.
Made of high-quality ABS material, it is shock-resistant and withstands high temperatures, while being easy to install in humid environments such as gardens, balconies, and garages.Technical Specifications
Type: Double switch socket
Material: ABS + PC
Protection rating: IP66
Working current: 16A
Voltage: 220-250V
Contact resistance: 100MΩ
Insulation resistance: 50MΩ
Color: Gray + black
Dimensions: 16.8 x 10.4 x 9.5 cm
Weight: 500g
Installation
Step 1: Drill holes with a drill bit, insert the Insert the wall plugs and expansion screws, then place the black waterproof pad over the hole.
Step 2: Plug the cable connector into the rear housing and connect the cable and ground wire.
Step 3: Use screws to connect the socket to the lower housing and attach the gray waterproof pad over the hole.
Features
- BrandXISRENS
- Width1 cm
- Height1 cm
- MaterialPVC
- ColourBlack
