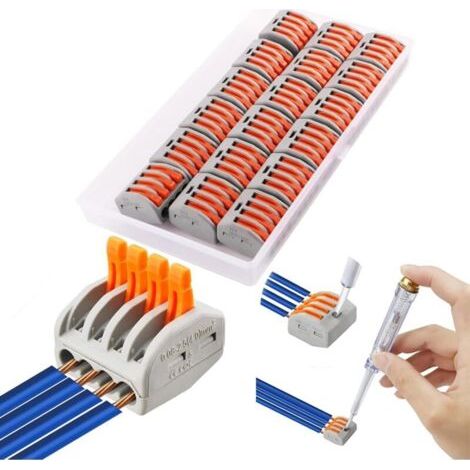

18-piece electrical connectors, automatic connection terminals, quick cable wire connector, compact wire connectors, PCT-214 (4 ports)
Sold by AINSCO
Often purchased together
Product information
Description
★ SAFE - This kit includes 18 pieces, PCT-214 * 18 PCS (4 ports). Made from the best flame-retardant insulating material, modified PA66 nylon, which has a long lifespan, no corrosion, is anti-aging, and withstands 4KV pressure and electrical shocks.
★ EASY TO USE - First, remove the metal sheath (9~10 mm), gently push the orange clip upwards at a 90° angle, insert the cable, and turn off the switch. Instead of traditional electrical tape and tangled butt connectors, this technological innovation reduces wiring time by 70%.
★ CONVENIENT - These 4-port wire connectors are universal for both solid and stranded wires. You can use them to control multiple lights with a single switch.
★ WIDE APPLICATION - Universal connectors: They are suitable for solid wires from 0.08 to 4 mm² / 28-12AWG and for stranded wires from 0.08 to 2.5 mm² / 28-14AWG. They are widely used in building wiring where space is limited for all necessary connections.
★ REUSABLE - Each connection terminal has a detection connection and can also be recycled. Each independent junction box allows for separate handling of different wires and diameters, ensuring safe connection. There is a test hole on each connector surface, allowing for electrical testing without removing the tape – intuitive and easy. Tip: Only one cable of the same type can be inserted into each terminal.
★ EASY TO USE - First, remove the metal sheath (9~10 mm), gently push the orange clip upwards at a 90° angle, insert the cable, and turn off the switch. Instead of traditional electrical tape and tangled butt connectors, this technological innovation reduces wiring time by 70%.
★ CONVENIENT - These 4-port wire connectors are universal for both solid and stranded wires. You can use them to control multiple lights with a single switch.
★ WIDE APPLICATION - Universal connectors: They are suitable for solid wires from 0.08 to 4 mm² / 28-12AWG and for stranded wires from 0.08 to 2.5 mm² / 28-14AWG. They are widely used in building wiring where space is limited for all necessary connections.
★ REUSABLE - Each connection terminal has a detection connection and can also be recycled. Each independent junction box allows for separate handling of different wires and diameters, ensuring safe connection. There is a test hole on each connector surface, allowing for electrical testing without removing the tape – intuitive and easy. Tip: Only one cable of the same type can be inserted into each terminal.
Features
- BrandSNQ
- ColourBlack
- Height10 mm
- Width10 mm
- Length10 mm
- MaterialNylon
- Number of terminals4
- Weight100 g
- Terminal block typeJunction connector
- Type of connectionAutomatic
- Terminal block useGeneral purpose
- ManoMano ReferenceME101605610
- MMID880200760357
- Product codeFD-50610
- EAN6287787196025
