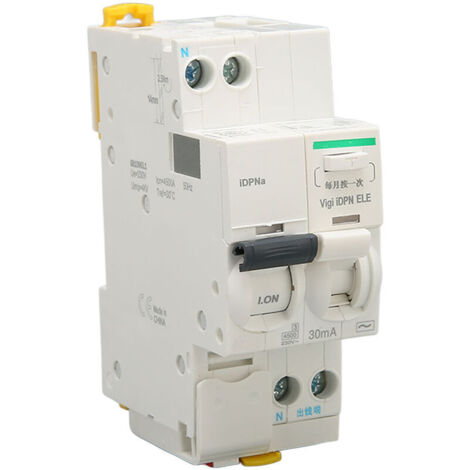

1P N AC 230V Air Circuit Breaker, Leak Protection Accessory for Office and Home 16A
Of which environmental contribution £0.01 including VAT.
Sold by CHAO WORLDWIDE
You may also like
Compare with similar items
Product information
Description
Features:
1. Superior Safety: Provides overload protection, short-circuit protection, leakage protection, etc., for enhanced safety.2. Reliable Operation: The fast arc extinguishing system quickly extinguishes arcs to effectively prevent electrical fires.
3. Improved Design: Includes a complete electrical accessory for remote indication of opening, closing, fault tripping, and more.
4. Wide Application: Widely used in power distribution protection in residential, commercial, and industrial buildings.
5. Easy to install: Double locking clip structure, can be used horizontally during installation, quick to install.
Specifications:
Item Type: Circuit BreakerMaterial: PA66
Operating Voltage (Ue): 230 V
Rated Insulation Voltage (Ui): 400 VAC
Impulse Withstand Voltage (Uimp): 4 kV
Thermal Trip Reference Setting Temperature: 30 ℃
Utilization Category: A
Pollution Level: 3
Magnetic Trip Curve C: 5 ~ 10 inches
Circuit Breaker Protection Class (IEC60529): IP20
Protection Class Installed in Distribution Box: IP40
Insulation Class: II
Surge Category (IEC60364): II
Resistance to humid heat (IEC60068-1): Class 2 (at 55°C, 95% relative humidity).
Wiring method: top in and bottom, bottom in and top out.
Function: short-circuit protection, overload protection, control isolation. Electrical life: 10,000 cycles
Mechanical life: 20,000 cycles
Ambient temperature: -25°C to +60°C
Storage environment temperature: -40°C to +85°C
Package list:
1 x circuit breakerNote:
Pay attention to electrical safety when using this product. Please install it under the guidance of a professional.Features
- BrandXISRENS
- Length1 cm
- Weight200 g
- Voltage1 V
- Amperage1 A
