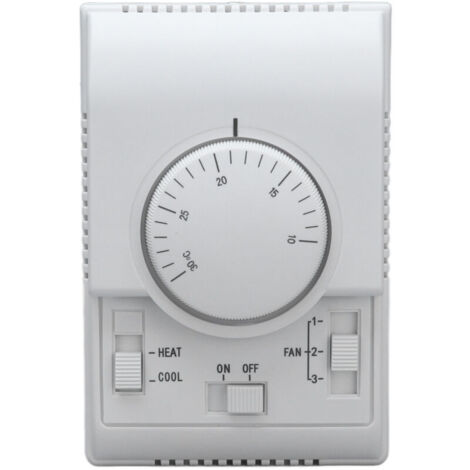

2-way central air conditioning mechanical thermostat, control switch, 110-220V air conditioner

1. Multiple operating modes: There are several operating modes, different wiring methods are available. Optional functions include a single wire (washer stops when the fan does not stop) or a double wire (washer stops and the fan stops). 2. External integrated installation: Adopts an external integrated installation, a standard type 86 installation cassette, easy to install. 3. Long service life: The thermostat contact is more than 100,000 times at 220V and full load, and the manual operation switch is more than 60,000 times. 4. Stable Performance: Comes with a beautiful appearance, a comfortable feel, and stable performance. The temperature sensing component adopts a precise metal bellows. 5. Various Rocker Switches: The rocker switches are power switches (ON or OFF); operating mode switch (HOT or COLD); fan speed switch (low speed 1, medium speed 2, high speed 3)

Specification:

Item Type: Central Air Conditioning Thermostat. Material: ABS Sensor: AC801A: inflatable diaphragm, AC801C: thermistor Voltage: 110-220V/AC, 50/60Hz Rated current: 1A Constant temperature range: 10~30℃ Temperature range: ≤1℃ to 25℃ Material and colour: base, cover and pull plate: white ABS plastic, pull switch: Hoary. Relative Humidity: Application: Used in commercial and residential buildings. Can control the central motor of the air conditioning unit's boiler and water pump for heating and cooling. The measured temperature is compared to the setpoint temperature by the logic circuit. When the relative temperature difference is greater than 1°C, the fan or electric pump is automatically started, and when the ambient temperature reaches the setpoint temperature, the fan or electric pump is automatically shut off.

Package List:

1 Thermostat

2 Screws

1 User Manual

Note:

Environmental Conditions: -20°C to 55°C
