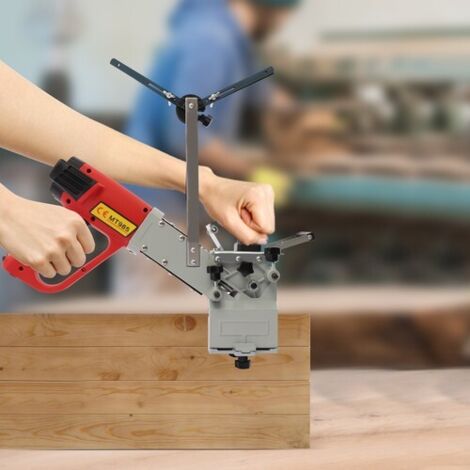

2000W Portable Edge Bander Curve Straight Edge Banding Machine Woodworking Tool

Description

Portable edge banding machine with 2000 watts of power and 50-610 ℃ adjustable temperature to achieve a fast and efficient edge sealing for a variety of different materials. With a net weight of only 6.61 pounds, its simple construction makes it easy to carry and operate, which will greatly improve the efficiency of edge sealing.

Key Features

Fast Edge Sealing: The edge banding machine's 2000 watts of power provides excellent heating and cooling efficiency, while its lightweight and simple operation allow for a hand-cranked speed of 2.5m/s, which greatly enhances edge sealing efficiency.

WideApplication: The product's optional sealing edge width allows you to easily seal panels from 0.19 inches to 1.96 inches in width(1mm edge banding), which greatly expands the product's application range.

Easy Adjustment: The product's adjustable temperature of 50-610℃ and three adjustable wind speeds allow you to easily adjust according to your needs. The flexible and accurate adjustment greatly improves the solidity of the sealing edge.

High-quality Pressure Wheel: The pressure wheel is made of high-temperature resistant and flexible high-quality rubber so it is smooth, smooth, and durable. The high-quality, flexible pressure wheel greatly enhances the degree of adhesion between the sealing strip and the workpiece, so that the sealing edge is more solid and does not easy to fall off.

High-quality Materials: The product is made of high-quality PVC, cast iron, and die-casting aluminum, which is very durable and not easy to deform.

User-friendly Design: The head and tail of the product are equipped with a handle to enable you to operate with both hands at the same time, which is more labor-saving and convenient. Thoughtful design allows you to use it for a long time and will not be too tired.

Easy to Carry: The product's net weight of 6.61 pounds and size of 19.68*6.49*13.18 inches allow you to easily carry it anywhere, which is very convenient.

Easy Trimming: The product is equipped with a trimmer that can trim both sides of the board at the same time to make the edges smooth and round. The hardened, sharp high speed steel blades make trimming even easier.

Sharp Head Trimmer: The high hardness high speed steel blades provide the excellent cutting ability for the head trimmer. The trimmer also features a guillotine design that allows you to easily and quickly cut through the edge banding to improve the smoothness of the edges.

High Compatibility: The product can be used for straight or curved edging to meet the needs of various furniture and workpieces.

Customer Service:We aim to provide quality products and services. If you have any problems, please feel free to contact us. We will reply and solve the problem for you as soon as possible.

Details

Triangle Bracket: The triangle bracket can fix the edgebanding stably to make the operation easier and more convenient.

Anti-slip Base Plates: The base plates are equipped with raised anti-slip surfaces to effectively fix the angle for smooth and efficient edge sealing.

Multiple Heat Dissipation Holes: Multiple heat dissipation holes are set at the tail and middle of the product to dissipate heat in time, which prolongs the service life.

Application

This product is suitable for edge sealing of melamine (impregnated) paper, wood veneer, plastic, etc. at home, construction sites, factories, etc. It applies to the edge banding of straight lines or arcs to meet the needs of various furniture and workpieces.

Specification

Model: MT985

Material: PVC, Cast Iron, and Die-casting Aluminum, High Speed Steel, Rubber

Color: Red

Plug: UK Standard

Maximum Input Power: 2000W

Power Supply: 220V 50HZ

Temperature Range: 50-610 ℃ /122-1130℉

Edge Sealing Temperature: 330-540 ℃ /626-1004℉

General Swing Speed for Arm Operation:<2.5m/s/8.2ft/s

Edge Banding Thickness: 1mm/0.04in, Maximum Edge Banding Width: 50mm/1.96in

Thickness of Edge Banding Strip: 2mm/0.07in, Maximum Edge Banding Width: 30mm/1.18in

Minimum Edge Banding Width: 5mm/0.19in

Maximum Width Supported by Trimmer: 60mm/2.36in

Maximum Thickness Supported by Trimmer : 0.6mm/0.002in

Maximum Thickness Supported by Head Trimmer: 0.5mm/0.02in

Maximum Width Supported by Head Trimmer: 40mm/1.57in

Noise Level: 65.6dB

Gross Weight: 4kg/8.81lbs

Net Weight: 3kg/6.61lbs

Package Size: 50*34*16cm/19.68*13.38*6.29in

Product Size: 50*16.5*33.5cm/19.68*6.49*13.18in

Package Included

1*Portable Edge Banding Machine

1*Triangle Bracket

1*Trimmer

1*Head Trimmer

1*English User Manual

Notes

• This edge banding machine is mainly used to heat the edge banding strip to achieve the edge banding effect. The edge banding strip used must be coated with hot melt adhesive.
• Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement. Please make sure you do not mind before you order.
