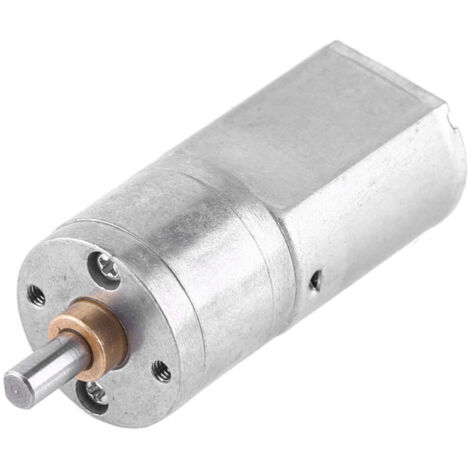

20mm diameter 12V DC powerful high torque gearbox motor (30 rpm)
Of which environmental contribution £0.10 including VAT.
Sold by Sinocor GmbH
You may also like
Compare with similar items
Product information
Description
1. A geared motor is a specific type of electric motor designed to produce high torque.
2. Geared motors are primarily used to reduce speed through a series of gears, which in turn creates more torque.
3. All-metal gears ensure a longer lifespan, higher torque, and less noise.
4. There are five different speed-reducing geared motors, and you can choose the one you need.
5. Geared motors can be found in many different applications and are likely used in many appliances in your home.
A geared motor is a specific type of electric motor designed to produce high torque.
Geared motors are primarily used to reduce speed through a series of gears, which in turn creates more torque.
All-metal gears would ensure a longer lifespan, high torque, and less noise.
There are five different speed geared motors available, and you can choose the one you need.
Geared motors can be found in many different applications and are likely used in many appliances in your home.
Specifications:
Voltage: 12VDC
Speed: 15 RPM, 30 RPM, 50 RPM, 100 RPM, 200 RPM (Optional)
Outer Diameter: 20 mm / 0.78"
No Load Lock
Speed (RPM) Current (mA) Torque (KG.CM) Current (A) Reduction Ratio Gearbox Length (mm)
15254.93.367120.5
30408.10.6838220.5
50----------
100226.70.6110018.5
200656.10.6541.517
Package Includes:
1 x Gear Motor
2. Geared motors are primarily used to reduce speed through a series of gears, which in turn creates more torque.
3. All-metal gears ensure a longer lifespan, higher torque, and less noise.
4. There are five different speed-reducing geared motors, and you can choose the one you need.
5. Geared motors can be found in many different applications and are likely used in many appliances in your home.
Specification:
Features:A geared motor is a specific type of electric motor designed to produce high torque.
Geared motors are primarily used to reduce speed through a series of gears, which in turn creates more torque.
All-metal gears would ensure a longer lifespan, high torque, and less noise.
There are five different speed geared motors available, and you can choose the one you need.
Geared motors can be found in many different applications and are likely used in many appliances in your home.
Specifications:
Voltage: 12VDC
Speed: 15 RPM, 30 RPM, 50 RPM, 100 RPM, 200 RPM (Optional)
Outer Diameter: 20 mm / 0.78"
No Load Lock
Speed (RPM) Current (mA) Torque (KG.CM) Current (A) Reduction Ratio Gearbox Length (mm)
15254.93.367120.5
30408.10.6838220.5
50----------
100226.70.6110018.5
200656.10.6541.517
Package Includes:
1 x Gear Motor
Features
- BrandTEHTUY
- Warranty1 year(s)
- MaterialCross-linked Polyethylene
- Voltage1 V
- ManoMano ReferenceME98923878
- MMID950944149145
- Product codeZJL-mano-05303
- EAN6282768126558
