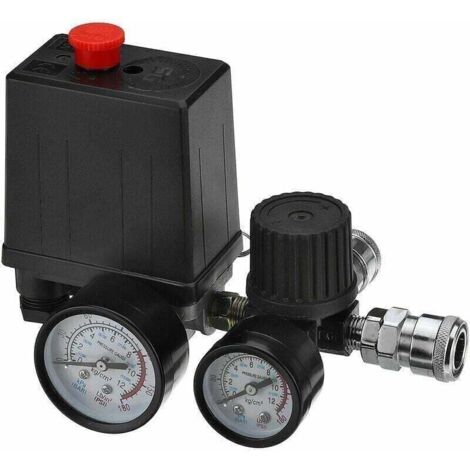

220V 0-180 psi Air Compressor Pressure Switch Control Valve Regulator Gauges with Quick Connector (220V)
Sold by re-green GmbH and 1 other seller
You may also like
Compare with similar items
Product information
Description
General Description: The air compressor pressure switch control valve regulator is designed for efficient and precise use. It is equipped with a quick-connect fitting and is made from high-quality materials such as plastic, galvanized aluminum, and iron. This compact and lightweight device is ideal for applications requiring reliable pressure control. Technical Specifications Voltage: 220 V Operating Pressure Range: 0-0.8 MPa Maximum Flow Rate: 3000 L/min Gauges: 0-180 PSI Pressure Switch Control Range: 95-125 PSI Adjustable Discharge Regulator: 30-120 PSI Inlet and Outlet Port Thread: G1/4 (0.4"/11 mm) Installation This regulator is easy to install and can be oriented in various ways to suit user preference. It can be installed inverted, vertically, or horizontally. Application This pneumatic pressure regulator is widely used in direct line oil-free silencer systems and small belt conveyors. It features a red ON/OFF button for convenient control. The system operates automatically: it turns on the compressor when the pressure is below 90 PSI and turns it off when the pressure exceeds 120 PSI. Other Information The piston seal uses a V-shaped seal for improved sealing and resistance to wear-resistant. The piston design offers 30% higher flow than traditional diaphragm types. The valve is designed with an overflow for quick and intuitive pressure relief. Aesthetically pleasing and modern appearance. Package includes: 1 x air compressor pressure valve switch.
Features
- BrandSNQ
- Pcs per pack1
- ColourBlack
- Height10 mm
- Width10 mm
- Compatible brandUniversal
- MaterialPlastic
- Voltage220 V
- Compressor accessory typePressure switch
- ManoMano ReferenceME98165860
- MMID333598660814
- Product codeFD-44835
- EAN6919595355096
