220V 0-180 psi Air Compressor Pressure Switch Control Valve Regulator Gauges with Quick Connector (220V)
You may also like
Compare with similar items
Product information
Description
Description

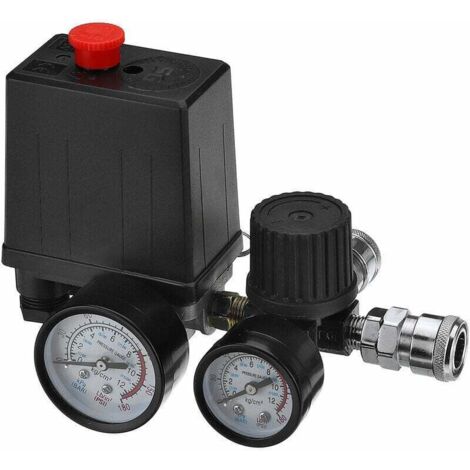

Air Compressor Pressure Switch Control Valve Regulator Gauges with Quick Connect
Specifications:
Color: As shown
Material: Plastic, Electroplated Aluminum, Iron
Voltage: 220V
Switching Pressure Range: 0.5-0.8 MPA (5-8 BAR) (90-120 PSI)
Maximum Flow Rate: 3000 L/min
Gauges: 0-180 PSI
Pressure Switch Control Range: 95-125 PSI
Relief Regulator Adjust Pressure Range: 30-120 PSI
Inlet and Outlet Ports Internal Thread: G1/4 0.4 ＂/ 11 mm
Features:
1. Small size and lightweight
2. The piston seal adopts a V-ring, which has a good sealing effect, good wear resistance, and good stability.
3. The structure and flow rate of the piston type are 30% greater than the traditional diaphragm type.
4. The valve body structure has an overflow, and the decompression speed is fast and intuitive.
5. High voltage regulation accuracy and sensitive response
6. The structure can accommodate the original gas pressure gauge and original gas purge valve, making it suitable for a variety of applications.
7. Easy installation. Inverted, vertical, and horizontal installation are possible according to customer preferences. The appearance is aesthetically pleasing.
8. This square pneumatic pressure regulating valve is widely used in direct line oil-free silencers and small belt conveyors.
9. It has a red ON/OFF button, a convenient design for operation.
10. Automatic control, automatic loading/unloading. Pressure below 90PSI, turn on the compressor. Pressure above 120PSI, turn off the compressor.
Package Included:
1 x Air Compressor Pressure Valve Switch
Notice:
1. Please allow 1-3cm error due to manual measurement. Please make sure you do not mind before you bid.
2. The color may vary depending on the display, please understand. Sold by the store
Features
- BrandTEHTUY
- Length10 mm
- Width10 mm
- Height10 mm
- Weight100 g
