Description

General description

This DDM15SD single-phase electronic DIN rail active energy meter is a compact and reliable device designed for accurate measurement of active power consumption in single-phase AC networks. Utilizing advanced microelectronic technology and large-scale integrated circuits, this meter offers a user-friendly experience with its backlit LCD display and easy installation options.

Technical specifications

Model: DDM15SD

Accuracy: Class 1

Reference voltage: 220V/230V

Frequency: 50/60Hz

Current specification: 5(80)A

Insulation performance: AC voltage 4KV for 1 minute

Impulse voltage: 1.2/50us 6KV

Power rating: 17,000 watts

Operating temperature: -20℃ to +50℃

Display: 5+1 backlit LCD (99999.1 kWh)

Bipolar width: 17.5 mm (DIN43880)

Installation

Mounting method: Standard 35 mm DIN rail (DIN EN50022)

Wiring methods: S-type (standard) and U-type (optional)

Input and output: Top and bottom connections

Usage

Measures electricity, voltage, current, frequency, and power factor

Unidirectional measurement of single-phase two-wire active power consumption

LED signal (red) indicates energy pulse

Other information

Complies with GB/T17245.321-2008

Built-in end cover for safety and aesthetics

Features

Brand
TINOR
Amperage
80 A
Control function
Yes
Frequency
50 Hertz
Type of electrical installation
DIN rail
Number of modules
1
Number of phase(s)
Single-phase
Voltage
220 V
Meter type
Electricity
ManoMano Reference
ME94197439
MMID
756946119918
Product code
TiR-UK-05273
EAN
8420468937250

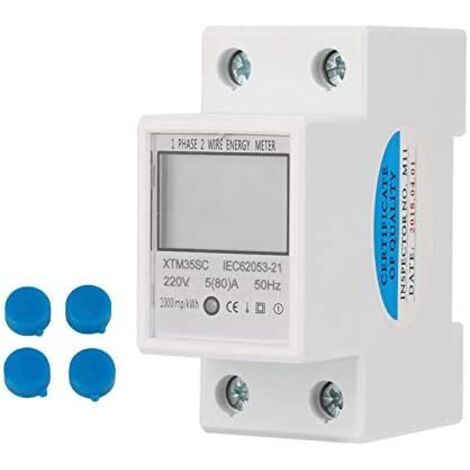

220V 5(80)A Digital Electricity Meter Single Phase 2 Wire 2P DIN Rail Digital Energy Meter DIN Rail Electric Meter Electronic KWh Meter,1pcs
