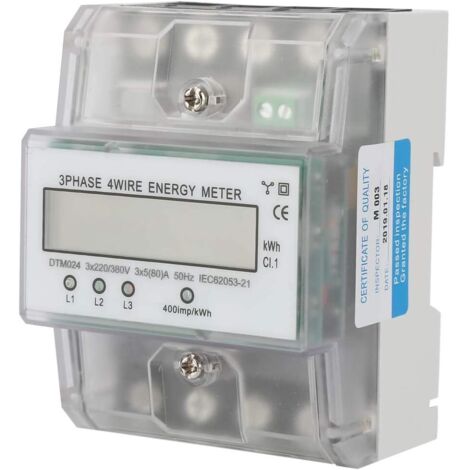

220V/380V 5-80A Energy Meter DTM024 3-Phase 4P Wattmeter KWh Digital Electricity Meter with LCD, other energy distribution and control devices
You may also like
Compare with similar items
Product information
Description
Model: DTM024;Voltage: 3x220/380V;Current: 3x5 (80) A;Accuracy level: 1.0;Standard: IEC62052-11 IEC62053-21;Frequency: 50 Hz; Pulse constant: 400 imp/kWh; Display: LCD 6+2
Power consumption: 2 W, 10 VA; Starting current: 0.004 lb; Operating temperature -20~55 °C; Storage temperature: -25~70 °C; Operating voltage: 0.9-1.1 nominal voltage; Maximum voltage: 0.8-1.15 nominal voltage; Annual average humidity: 75%; Creep: Less than 1 pulse when the rated voltage is 115% or no current.
This product uses a transparent case, which is convenient for observing the working status of the electronic components inside the meter.
The backlit liquid crystal display allows you to read the data clearly. The product has very low power consumption. The theoretical power consumption is less than or equal to 2 W.
The product has stable performance and can operate steadily within the temperature range of -20 to 55 degrees Celsius. The products are widely used in power measurement systems.
Features
- BrandBEIJIYI
- Amperage80 A
- Warranty2 year(s)
- Accuracy classClass 1.0
- Control functionNo
- Frequency50 Hertz
- Height7.6 cm
- Width2 cm
- MaterialPolystyrene (PS)
- Number of phase(s)Three-phase
- Weight500 g
- Power2 W
- Voltage220 V
- Meter typeElectricity
- ManoMano ReferenceME82470213
- MMID510245663820
- Product codeFRYU-1634
- EAN9324622229986
