220V/380V 5-80A Energy Meter DTM024 Wattmeter Three Phase 4P KWh Electric Digital Meter with LCD, Other Power Distribution and Control Devices
Recommended Price
You may also like
Electricity Energy Meter, Power Consumption Monitor, 5-80A 220V 50Hz
Wattmeter 230 V/16 A，Wattmeter socket energy meter, energy consumption meter Power Consumption Controller with LCD display screen, maximum power 3680W（1pcs）
Energy Meter, 5-80 A, 230 V, 50 Hz, LCD, Single Phase Energy Meter, Wattmeter, DIN Rail Mount, DDS015
Compteur d'énergie Wattmètre Prise,Prise Compteur d'Énergie électrique avec 7 Mode, Compteur d'énergie avec l'écran d'affichage à cristaux liquides pour Économie d'Energie, 3680W
Boîtier d'économie d'énergie, dispositif d'économie de facteur de puissance, économiseur d'appareils ménagers, adaptateur 90V-250V pour utilisation au bureau et en usine
Energy Meters Wattmeter Socket Electricity Consumption, Socket Regulator Kwh Meter Maximum Power 3680W 16A for Energy Saving
Compare with similar items
Product information
Description

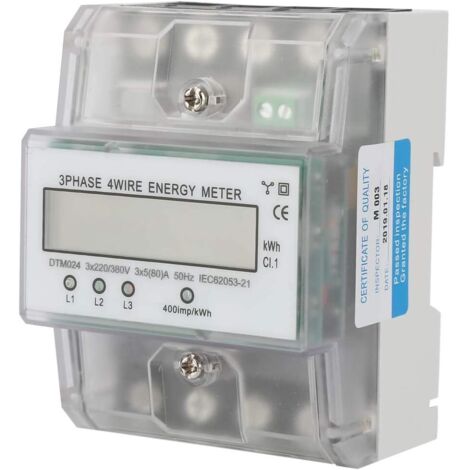

Model: DTM024;Voltage: 3x220/380V;Current: 3x5 (80) A;Accuracy level: 1.0;Standard: IEC62052-11 IEC62053-21;Frequency: 50 Hz; Pulse constant: 400imp/kWh;Display: 6+2 LCD
Power consumption: 2W, 10VA;Starting current: 0.004lb;Working temperature -20~55°C;Storage temperature: -25~70°C;Working voltage: 0.9-1.1 rated voltage;Maximum voltage: 0.8-1.15 rated voltage;Annual average humidity value: 75%;Creep: Less than 1 pulse when the rated voltage is 115% or no current
This product adopts a transparent shell, which is convenient for observing the working status of the electronic components inside the meter.
The backlit liquid crystal display allows you to read the data clearly. The product's power consumption is very low. The theoretical power consumption is less than or equal to 2W.
The product has stable performance and can work steadily in the range of -20 to 55 degrees Celsius. The products are widely used in power measurement systems.
Features
- BrandWOIYIC
- Amperage80 A
- Accuracy classClass 1.0
- Control functionYes
- Frequency50 Hertz
- MaterialPolystyrene (PS)
- Number of phase(s)Three-phase
- Power2 W
- Voltage220 V
- Meter typeElectricity
- ManoMano ReferenceME96137927
- MMID393186334588
- Product codeMM-Tina-UN5226
- EAN9324622893880
