Product information

Description

General description

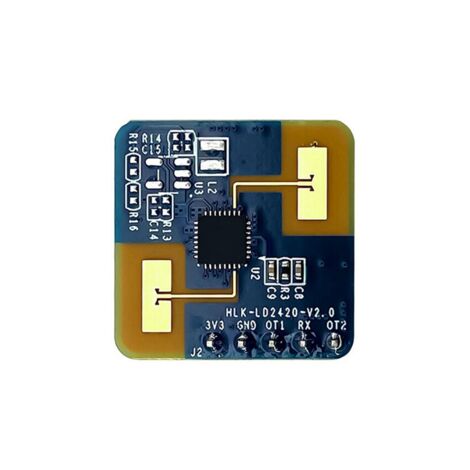

The 24G mmWave Human Presence Radar Sensor Motion Detection Module LD2420 is designed for accurate motion detection within a specified range. It operates in the 24 GHz frequency band and is suitable for various applications where human presence detection is required.

Technical specifications

Frequency: 24G-24.25GHz

Modulation mode: FMCW

Detection distance: 0.75~6m adjustable

Detection angle: ±60°

Power supply: 3.3V (Typ.)

Power supply input voltage: 3.0V~3.6V

Current: ~50mA

Output serial level: 3.3V

Scanning Bandwidth: 250MHz

Operating temperature: -40°C~+85°C

Data Format: ASCII Serial Output/High and Low Level 3.3V

Package: Default with pins

Color: Blue

Material: Plastic+Metal

Measurement allowed error: +/- 1-3 cm

Installation

Ensure the radar is equipped with a housing that has good wave transmission characteristics in the 24 GHz band, avoiding metals or materials that shield electromagnetic waves.

Install the product in a suitable environment, considering factors that may affect detection.

When wall-mounted, account for external interference from air conditioners and electric fans.

Usage

Avoid environments with non-human objects that have continuous movement, such as animals or swinging curtains, as these can affect detection.

Be cautious of large, highly reflective planes or objects directly in front of the radar antenna, as they may cause interference.

Other information

Package Contents: 1 x Uction Module (other products not included).

Note: Light reflection and different displays may cause the color of the item to differ slightly from the real thing.

Features

Brand
TLILY
Colour
Blue
Power source
Corded
Intended use
Indoor
Height
1 cm
Width
7 cm
Length
8 cm
Material
Metal / Plastic
Voltage
3.6 V
ManoMano Reference
ME92940796
MMID
283403768569
Product code
PUUK-MM01-I500419050
EAN
4853489449268
