Product information

Description

General description

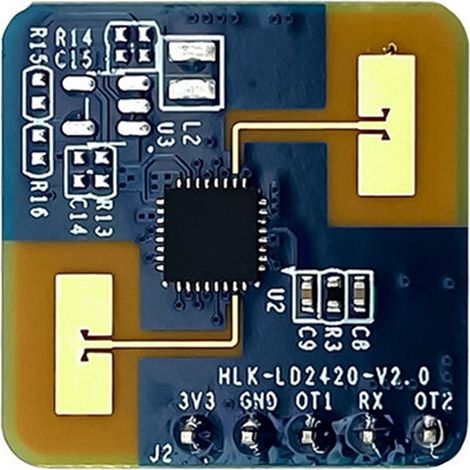

This 24G mmWave LD2420 Human Presence Radar Sensor Motion Detection Module is designed for precise motion detection within a specified range. It operates in the 24 GHz frequency band and is suitable for various applications requiring human presence detection.

Technical specifications

Frequency: 24G-24.25GHz

Modulation mode: FMCW

Detection distance: 0.75~6m adjustable

Detection angle: ±60°

Power supply: 3.3V (Typical)

Current: ~50mA

Output Serial Level: 3.3V

Sweep bandwidth: 250MHz

Ambient Temperature: -40°C~+85°C

Data format: Serial ASCII output/high and low level 3.3V

Package: Default with pins

Color: Blue

Material: Plastic + Metal

Measurement allowed error: +/- 1-3cm

Installation

The radar must be fitted with an enclosure that has good wave-transmission characteristics in the 24 GHz band.

The enclosure must not contain metals or materials that shield electromagnetic waves.

Consider external interference factors such as air conditioners and electric fans when wall mounting.

Usage

This product should be installed in a suitable environment to ensure optimal detection performance.

Detection may be affected by non-human objects with continuous movement in the sensing area, such as animals or swinging curtains.

Strong reflective objects directly in front of the radar antenna can cause interference.

Other information

Package Contents: 1 x induction module (other products not included).

Note: Light reflection and different displays may cause the color of the item in the picture to differ from the actual product.

Features

Brand
TLILY
Colour
Blue
Width
6 cm
Length
8 cm
Material
Metal
