24V/1.5A Nema 17 2 Phase Stepper Motor 0.4 NM 1.8° Industrial Control Stepping Motor

1、The motor can respond quickly, start and stop quickly, and meet the high requirements of security.

2、High speed, rated speed is 600 rpm.

3、Products are widely used in various types of industrial automation control equipment, such as: packaging equipment, laser equipment, security monitoring equipment, textile equipment.

4、High torque, rated torque is 0.4NM.

5、The product has passed CE certification and the product quality is reliable.

Feature:

The motor can respond quickly, start and stop quickly, and meet the high requirements of security.

High speed, rated speed is 600 rpm.

Products are widely used in various types of industrial automation control equipment, such as: packaging equipment, laser equipment, security monitoring equipment, textile equipment.

High torque, rated torque is 0.4NM.

The product has passed CE certification and the product quality is reliable.

Specification:

Model: FY42EM150A

Certification: CE certification

Voltage: 24v

Current: 1.5A

Rated speed: 600 rpm

Rated torque: 0.4 NM

Step angle: 1.8°

Efficiency: 80%

Resistance accuracy: +-10% (20 ° C)

Temperature rise: 80 ° Cmax

Insulation resistance: 100MΩ Min, 500 V DC

Withstand voltage: 500V AC/Min

Radial maximum load: 75N

Axial maximum load: 15N

Radial clearance: 0.02max

Axial clearance: 0.08max

Ambient temperature: -20 ° C ~ +50 ° C

Scope of application: Industrial automation

Product shape and Installation size:

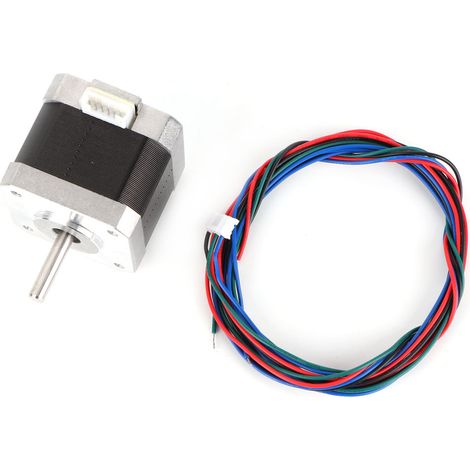

Package list:

1 * Stepper Motor

1 * Wire

Note:

The actual product color may deviate from the photo due to light.

There may be a slight deviation in the measurement of product.
