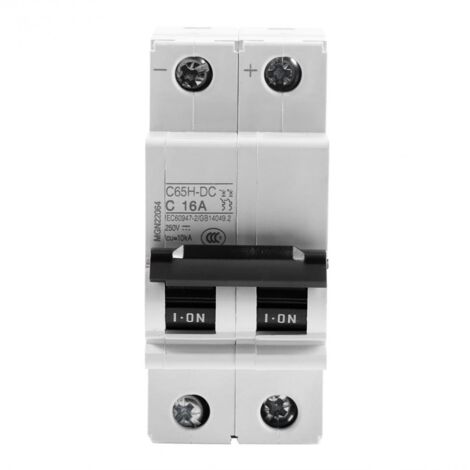

250V DC 2P Low Voltage Air Miniature Circuit Breaker Solar Circuit Breaker 16A/63A (16A)

~~£25.44~~

Product information

Description

General description

Main function: used to protect a circuit from damage caused by overcurrent resulting from an overload or short circuit. This circuit breaker is convenient with fast closing to ensure reliable charging and extend the life of automatic switches. It is easy to use and reliable, supporting short circuit protection and overload protection. It has a typical current of 16A/63A (optional) and is widely used for solar panel grid systems, wind and solar hybrid systems, and many other DC systems.

Technical specifications

Poles: 2P

Rated voltage: DC250V

Ultimate breaking capacity (ICU): 10kA

Riding characteristics: B, C

Rated impulse withstand voltage (Uimp): 5kV

Current limiting class: 3

Mechanical life: 20,000 times (IEC 60947-2 / GB14048.2)

Electrical life: 10,000 times (IEC 60947-2 / GB14048.2)

Operating temperature: -25 ℃ ~ + 70 ℃

Storage temperature: -40 ℃ ~ + 85 ℃

Heat and humidity resistance: 55 ℃, 95% RH

Size: 8.2 x 3.6 x 7 cm / 3.22 x 1.41 x 2.75 in

Other information

Package includes: 1 x Circuit Breaker

Features

Brand
AOUGO
Amperage
16 A
Warranty
2 year(s)
Tripping curve
C
Circuit breaker function
Single pole
