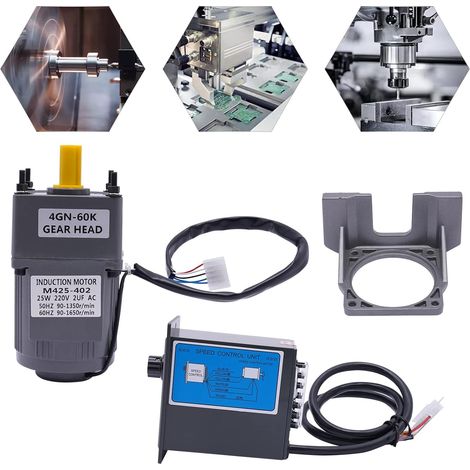

25W Geared Speed Motor AC Geared Motor With Controller 220V 60K, Stand, rotational speed 20rpm, Adjustable Speed, for machine tools, transportation equipment

~~£89.99~~

£2Offered

To be applied on the payment page

Offer valid today only.

Sold by DENCRESTUK

Product information

Description

General description

Electric motors are crucial for the operation of equipment. Our 25W geared motor is designed with high-quality materials and processes, offering high torque (8Nm) and a rotational speed range of 90-1350rpm, effectively improving work efficiency. The adjustable speed feature meets various operational needs, making it a powerful choice for your applications.

Technical specifications

Power: 25W

Voltage: AC 220V

Torque: 8Nm

Rotational Speed: 90-1350rpm

Reduction Ratio: 1:60

Noise Level: About 50db

Temperature Range: -10-60℃ / 14-140℉

Connecting Line Length: About 1m / 3.28ft

Shaft Diameter: 10mm / 0.39inch

Shaft Height: 27mm / 1.06inch

Motor Size: 6.7*8*9.7cm / 2.6*3.2*3.8inch

Reducer Size: 6.7*8*4.6cm / 2.6*3.2*1.8inch

Stand Size: 16*7.5*12.5cm / 6.3*3*4.9inch

Stand Top Length: 10.4cm / 4.1inch

Package Size: 24*24*12.5cm / 9.45*9.45*4.92inch

Net Weight: 2.5kg / 5.51lbs

Gross Weight: 3kg / 6.61lbs

Installation

Remove the holster before installation.

Fix the reducer on the gear motor with four M5 screws (not included).

Install the keyway at the keyway opening.

Plug the speed controller and gear motor together (main wire to main wire).

Unscrew the two AC screws (not included) on the back of the speed controller.

Connect single-phase power to both AC ports (without distinguishing between zero and fire wires) and tighten the screws.

Turn the speed control knob to adjust the motor speed.

Install the stand on the motor.

Usage

This motor can be widely used in various applications including packaging, machine tools, transportation equipment, textile machinery, automatic welding machines, automotive industry, elevator machinery, printing, textile, dyeing, chemical, food, pharmaceutical, and other engineering machinery.

It is also suitable for advertising, office, petrochemical, instrumentation, stage lighting, transmission, automated warehouses, parking lots, and other equipment.

Other information

Built-in cooling fan (>60W) and cooling holes ensure safety and prolong the motor's life.

Complete accessories and detailed instructions allow for quick installation and use.

Protective packaging with foam and bubble bag ensures safe delivery.

Note: M5 screws and plug are not included; a power cord must be purchased separately.

Please follow the safety precautions and keep the product away from children.

Features

Brand
CNCEST
Warranty
1 year(s)
Frequency
50 Hertz
Width
60 mm
Length
90 mm
Material
Aluminium
Weight
2.5 kg
Power
25 W
Voltage
220 V
ManoMano Reference
ME95904438
MMID
484352986286
Product code
20211012649
EAN
740684294912
