Product information

Description

General description

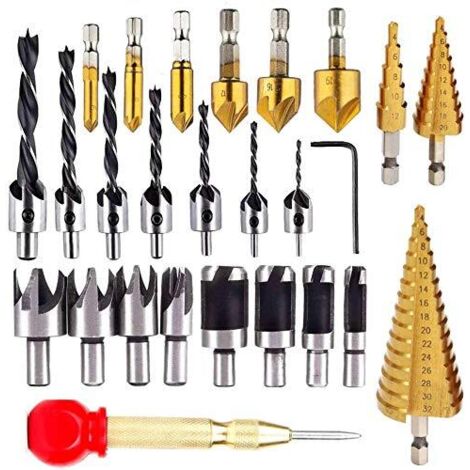

26 Pieces Countersink Drill Bit Set includes a variety of drill bits designed for wood and metal applications. This comprehensive set features 8 Wood Plug Cutter Drill Bits, 7 Tri-Point Drill Bits, 6 Countersink Drill Bits, and 3 Step Cone Drill Bits, making it suitable for various drilling tasks.

Technical specifications

Material: High-quality carbon steel with titanium coating

Countersink drill bit length: 48mm

Dimensions of drill bits: 3mm diameter x 60mm length, 4mm diameter x 75mm length, 5mm diameter x 85mm length, 6mm diameter x 93mm length, 7mm diameter x 10mm length, 8mm diameter x 11mm length, 10mm diameter x 12mm length

Step drill bit sizes: 4-32mm (4mm, 6mm, 8mm, 10mm, 12mm, 14mm, 16mm, 18mm, 20mm, 22mm, 24mm, 26mm, 28mm, 30mm, 32mm)

Shank diameter: 9.3mm

Shape: 5 flutes

Edge: 90 degrees

Compatibility and accessories

Compatible with bench drills, hand drills, and other professional drilling machines

Includes 1 x Automatic Center Punch for marking workpieces

Installation

For optimal performance, it is recommended to use a bench drill or secure the drill to avoid slippage or eccentricity during drilling.

Usage

Suitable for drilling into wood, stainless steel, carbon steel, aluminum plate, iron plate, and other materials.

Adjustable drilling length for different screw lengths.

Other information

Note: For safety, do not use the drill bits at excessive speeds.

Please ensure compatibility with your machine before use.

Features

Brand
TINOR
Diameter
6 mm
Shank type
Hexagonal
Compatible machine
Drill
Suitable for
Wood
Material to Work On
Wood
Material
Titanium
Bit type
Rotary file
Insertion type
Hexagonal
Sold as a set
Yes
ManoMano Reference
ME94203130
MMID
112066649252
Product code
TiR-UK-06594
EAN
8420468950464
