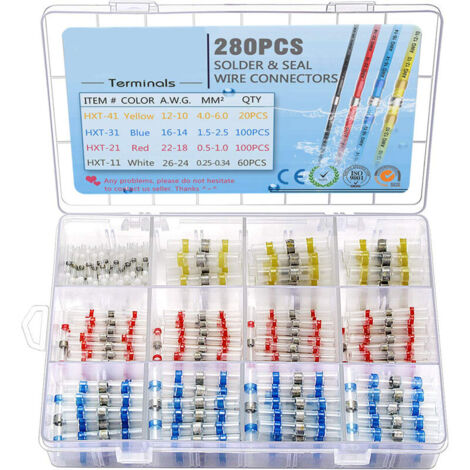

280pcs Electrical Terminals Heat Shrink Solder Seal Electrical Copper Solder Seal Heat Shrink Cable Connector 4 Clamp Size

~~£42.99~~

Product information

Description

General description

No crimping is required for these 280pcs Electrical Terminals Heat Shrink Solder Seal Electrical Copper Solder Seal Heat Shrink Cable Connectors. Simply insert the stripped wire into the solder connector and heat it evenly to complete the connection. The connectors feature a dual-walled design with a polyolefin tube outside and hot melt adhesive inside, providing a watertight seal and preventing corrosion.

Technical specifications

Shrinkage Ratio: 2:1

Included Connectors: 280pcs

Sizes: 100 red (0.5-1mm²), 100 blue (1.5-2.5mm²), 60 white (0.25-0.34mm²), 20 yellow (4-6mm²)

Installation

Step 1: Slip the connector onto one of the wires, then twist the two wires together.

Step 2: Move the connector to the center of the conductor, ensuring the wire ends overlap and remain within the solder socket area.

Step 3: Use a heat gun with a reflective nozzle to slowly and evenly heat the connector until it fuses to the wire.

Tip: For best results, use a heat gun instead of a lighter, especially for beginners.

Usage

These connectors are ideal for use in automotive, railway, naval personnel, aerospace, energy, and electronics industries. They provide an excellent wiring solution for hard-to-reach or space-limited areas.

Other information

Made of environmentally friendly and flame-retardant insulated heat shrink tubing.

High tensile strength, waterproof, and leak-proof.

Improves contraction strength, ensures insulation retention, strain relief, and cable control.

Features

Brand
GOTRAYS
Warranty
1 year(s)
Pcs per pack
280
Connection configuration
M-M-M
Colour
Yellow
Availability of spare parts
3 year(s)
Amperage
1 A
Width
100 mm
Length
100 mm
Material
Copper
Weight
500 g
Voltage
2 V
Connection type
Insulated terminal
Termination type
Insulated sleeve
ManoMano Reference
ME90699542
MMID
449050984955
Product code
GOTRFR-1578
EAN
9328872214327
