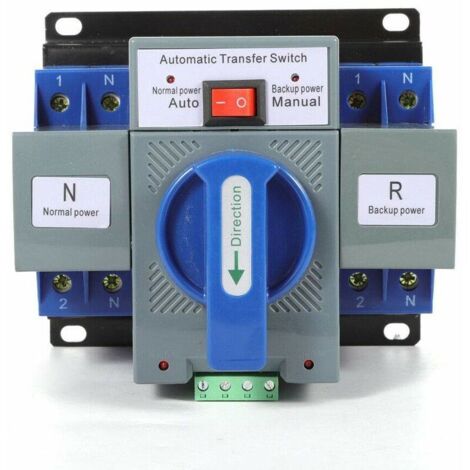

2P 63A double power switching switch automatic switch 220V

1. Fast switching: You can easily switch from the main power supply to the backup power supply, and the switching time takes only two seconds. In case of a power supply failure, it automatically connects one or more load circuits from one power supply to another.

2. Comprehensive protection functions: The switch supports multiple protection functions such as short-circuit, overload, phase loss, and undervoltage protection to ensure your safety during use.

3. Manual/automatic integration: The switch is equipped with manual and automatic switching buttons. In automatic mode, the toggle switch is in the left position, and in manual mode, the toggle switch is in the correct position to meet different needs.

4. Good environmental adaptability: Good adaptability to the environment. High or low temperatures will not easily affect its normal operation. It uses a pure copper motor to guarantee stable operation and minimize noise generated during use.

5. High safety: This is a good product with high safety and reliability because it uses high-quality motor and cover protection and has passed professional CE-level certification. The switch is made of resin, which has good robustness, corrosion resistance, and impact resistance, making it very durable.

ProductDescription

detail

Various indicator lights: The switch features a variety of indicator lights to ensure safe energy consumption.

Red rocker switch: Switch from automatic to manual mode with a simple press of a button.

Wiring clamp: Uses a plug-type connector to prevent accidental contact, making it safer and faster to use. It also connects to optically designed clamps and is therefore suitable for complete distribution box groups.

Steel base: The base is made of thickened steel, which is not only stable but also strong, durable, and difficult to deform. Application: It can be used in various scenarios such as elevators, surveillance, fire protection, and office buildings. It is suitable for domestic electrical applications and various large-scale locations such as sports facilities, banks, and mechanical systems. Specification: Model: GCQ2-63/2. Color: Blue. Material: Resin and steel. Conversion mode: Automatic action. Display function: Illuminated display. Bore: M6. ATS level: CB level. Circuit type: 2-way. Installation type: Wall-mounted. International protection rating: IP63. Operating level: AC-33iB. Operating voltage: 220VAC, 50/60Hz. Rated current: 63A. Conversion time: ≤2S. Operating mode: Automatic/Manual. This package includes: 1 dual-power automatic switch. 1 English manual.
