2Sets Solar PV Connectors Set IP68 Waterproof Anti UV 1000V Solar Built in Fuse Connector for Solar Cables/Controllers30A
You may also like
Compare with similar items
Product information
Description
1、IP68 Waterproof: The solar PV connectors set has good water resistance, and the waterproof level reaches IP68.
2、Anti UV: 1000V solar PV connectors have excellent anti aging and anti UV ability, very durable.
3、Easy to Plug Unplug: The Waterproof Solar Fuse Connector is easy to plug and unplug and compatible with solar photovoltaic connectors.
4、Ease of Use: Solar panel PV connector easily plugs and unplugs by pressing both sides of the built in lock on the connector with your fingers.
5、Scope of Application: Solar PV connectors are suitable for solar panels, solar cables, solar controllers, etc.
Item Type: Solar PV Connectors Set
Material: PPO Plastic Body, Copper Tin Plated Hardware, PV Special Fuse
Specifications (rated Current): 10A 15A 20A 30A
Model: MC F
Rated Voltage: 1000V
Absolute Green Material: PPO Material
Conductor Material: Copper Tinned
Ambient Temperature: -40℃~+90℃
Product Temperature Resistance: -40℃~+135℃
Security Level: DCII
Waterproof Grade: IP68
Contact Resistance: ≤0.35mΩ
Connection System: Multi Point Connection
Self Locking System: Embedded
Pull out Force: ≥50N
Insertion Force: ≤50N
Resistance Level: Ul94 VO
Scope of Application: Solar Panel Connection
Weight: Approx. 168g / 5.9oz

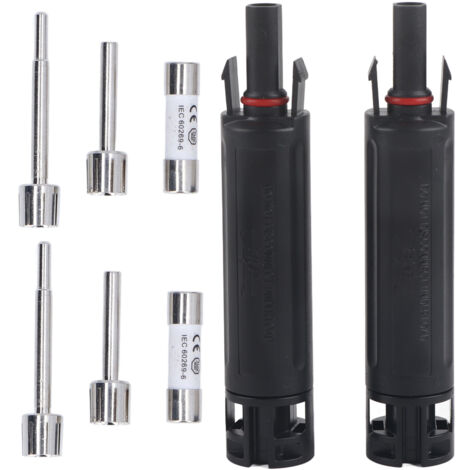

2 x Solar PV Connectors Set(8 Loose Parts)
Features
- BrandSTUNACY
- Length14 cm
- Amperage30 A
- IP ratingIP68
- Connection configurationM-F
