Product information

Description

General description

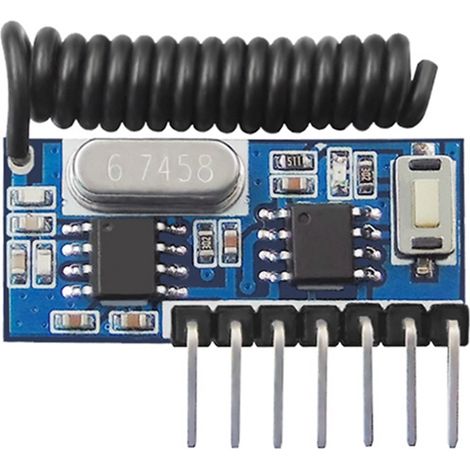

The 315Mhz RF Receiver Learning Code Decoder Module is a versatile wireless module designed for remote controls, featuring 4 channel outputs. It supports various encoding chips including EV1527 and PT2262, making it suitable for a wide range of applications. The module is easy to set up, eliminating the need for manual mode selection through soldering or jumper wires.

Technical specifications

Working voltage: DC3V-5V

Working current: 3mA

Sensitivity: -110DBM

Data rate: MAX 12 KB/S

Modes: Inching, self-locking, interlocking (7 modes available)

Output: 4 channels of CMOS level signals

Color: Blue

Material: Plastic + Metal

Dimensions: Measurement allowed error is +/- 1-3cm

Compatibility and accessories

Supports EV1527 and PT2262 encoding chips

Can store up to 16 remote controls

Usage

When a remote control button is pressed, the outputs D0, D1, D2, and D3 are set to high level; when not pressed, they are low level.

Each remote control has a unique address code to prevent coding conflicts and mutual interference.

Other information

Package Contents: 1 * Wireless decoding module

Note: Light reflection and different displays may cause the color of the item in the picture to differ slightly from the actual product.

Features

Brand
TLILY
Pcs per pack
1
Colour
Blue
Power source
Cordless
Material
Plastic
Type of electronic component
Card
ManoMano Reference
ME90310201
MMID
148075197224
Product code
4852453763331
EAN
4852453763331

315Mhz RF Receiver Learning Code Decoder Module Wireless 4 CH Output for Remote Controls 1527 2262 Encoding
