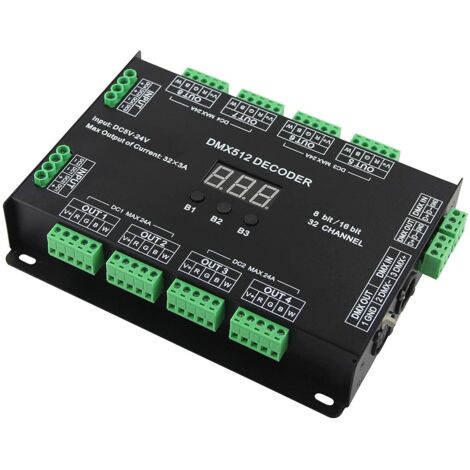

32 Channel 96A RGBW DMX 512 LED Decoder Controller DMX Dimmer DC5-24V RGBW RGB LED light 8 Bit/16 Bit
You may also like
Compare with similar items
Product information
Description
Description: 32CH RGBW DMX512 decoder converts DMX512/199 digital signal into PWM (Pulse Width Modulated Modulated) signals controlled by DMX512 console, DMX512 8-bit, 16-bit signal optional. Featuring unique firmware, the decoder produces smooth and perfect fades. Specifications: Model: 32CH DMX512. Decoder Input Voltage: DC 5-24V Max Load Current: 3A×32CH Max 96A Max Output Power: 48W(5V)/1152W(12V)/234W(24V) ) Gray scale: 8-bit or 16-bit levels - Input signal: DMX512/199. Output signal: Constant voltage PWM×32. Decoder Channel: 32CH RGBW DMX512 Socket: 3-pin XLR. Size: 187×145×35mm. Gross weight: 757g. Features: 1. Automatically adapts to the input voltage between DC5-24V. 2. Standard DMX512 input signal; 3-digit display shows DMX address. 3. 32 output channels, linear dimming, flicker-free outputs. 4. 14 color changing modes and 1 gears in test mode. 5. DMX512 signal presence indicator. 6. Power loss memory. 7. Incorrect wiring protection at DMX port. 8. The decoder can work in DIM/CT/RGB/RGBW control mode.
Features
- BrandLONGZIMING
- Length187 mm
- Width145 mm
- Height35 mm
- MaterialPlastic
