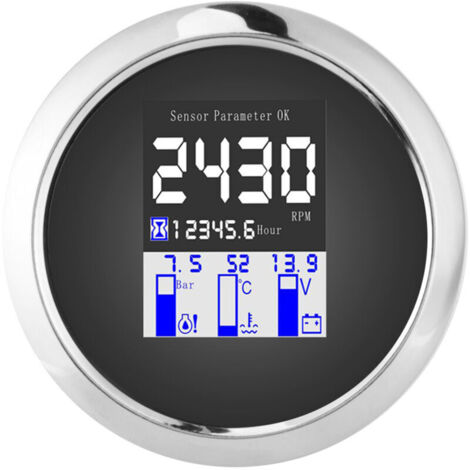

3.3 inch multifunction gauge RPM Oil pressure Water temperature Voltage J1939 CAN FieldBus protocol (Black).
Of which environmental contribution £0.01 including VAT.
Sold by Sinocor GmbH
You may also like
Compare with similar items
Product information
Description
1. Integrated engine speed, oil pressure, engine coolant temperature, battery voltage display, with total engine hours.
2. Wide application, suitable for construction machinery, mining machinery, excavators, agricultural vehicles, and trucks.
3. IP67 waterproof, which can withstand harsh marine environments.
4. Made of high-quality 316 stainless steel, rustproof, corrosion-resistant, and durable.
5. Simple installation, no complicated tools required, convenient to use.
Item Type: Multifunctional Gauge.
Material: 316 Stainless Steel + ABS + PC
Optional Color: White, Black
Applicable Models: Suitable for construction machinery, mining machinery, excavators, agricultural vehicles, trucks.
Power Supply: 12V/24V
Operating Voltage: 9V-32V
Working Temperature: -20-70℃
Diameter: Approx. 85 mm / 3.3 inches
Waterproof rating: IP67
Motor speed: 0-9999 rpm
Motor oil pressure: 0-10 bar
Motor temperature: 40-120℃
Battery voltage: 9-32V
Total motor hours: 0.0 to 9999.9 hours
Alarm messages:
1. Oil pressure sensor disconnection alarm, low oil pressure alarm
2. Water temperature sensor disconnection alarm, temperature too high
3. Low battery voltage alarm
Input parameter: J1939 protocol network data
Wiring:
1. Black wire: negative terminal of the power supply
2. Red wire: DC 9-32V.
3. Yellow wire: CNAL
4. White wire: CNAH
2. Wide application, suitable for construction machinery, mining machinery, excavators, agricultural vehicles, and trucks.
3. IP67 waterproof, which can withstand harsh marine environments.
4. Made of high-quality 316 stainless steel, rustproof, corrosion-resistant, and durable.
5. Simple installation, no complicated tools required, convenient to use.
Specification:
Condition: 100% Brand NewItem Type: Multifunctional Gauge.
Material: 316 Stainless Steel + ABS + PC
Optional Color: White, Black
Applicable Models: Suitable for construction machinery, mining machinery, excavators, agricultural vehicles, trucks.
Power Supply: 12V/24V
Operating Voltage: 9V-32V
Working Temperature: -20-70℃
Diameter: Approx. 85 mm / 3.3 inches
Waterproof rating: IP67
Motor speed: 0-9999 rpm
Motor oil pressure: 0-10 bar
Motor temperature: 40-120℃
Battery voltage: 9-32V
Total motor hours: 0.0 to 9999.9 hours
Alarm messages:
1. Oil pressure sensor disconnection alarm, low oil pressure alarm
2. Water temperature sensor disconnection alarm, temperature too high
3. Low battery voltage alarm
Input parameter: J1939 protocol network data
Wiring:
1. Black wire: negative terminal of the power supply
2. Red wire: DC 9-32V.
3. Yellow wire: CNAL
4. White wire: CNAH
Package list:
1 gauge1 manualFeatures
- BrandTEHTUY
- Rotational speed9999 rpm
- Height10 mm
- IP ratingIP67
- Width10 mm
- Length10 mm
- MaterialStainless steel
- Measuring methodDigital
- ManoMano ReferenceME99018146
- MMID405235469199
- Product codemano-HWLX-09432
- EAN6282768384439
