3/4 inch Venturi Tube Fertilizer Injector Device Filter Kit Irrigation Kit, Garden Irrigation Device Kit

3/4 Inch Irrigation Venturi Fertilizer Injector Device Filter Tube Kit

What is a Venturi Fertilizer Injector?
A venturi is a device that creates a vacuum when fluid flows through it.
The fluid that creates the vacuum is known as the prime mover.
The prime mover for irrigation injectors is the irrigation water itself.
The vacuum created by the venturi draws the fertilizer or chemical into the prime mover.

How to work on a Venturi?
Our Venturis are water-powered, meaning they are driven by the pressure of the main irrigation pipeline.
The energy required to operate these devices reduces the irrigation water pressure in the water line.

Applications:
Fertilizer and chemical injection via drip and sprinkler irrigation systems

Features:
Made of engineering plastic.
Excellent chemical resistance to most chemicals.
Highly efficient and compact differential pressure injection device.
Economical and low-cost option.
Available with a 3/4" BSP inlet/outlet connection.
Includes a fertilizer injector, water tube, flow regulator, and filter.

Specifications:
Inlet/Outlet Thread: 3/4" Material: POM
Size: 139 * 72 * 33mm
Tube Length: Approx. 2.26m
Flow Rate Range: 0.65-2.42 m³/h
Operating Pressure: 0.7-9.5 bar
Self-Priming Capacity: 9-92L/h

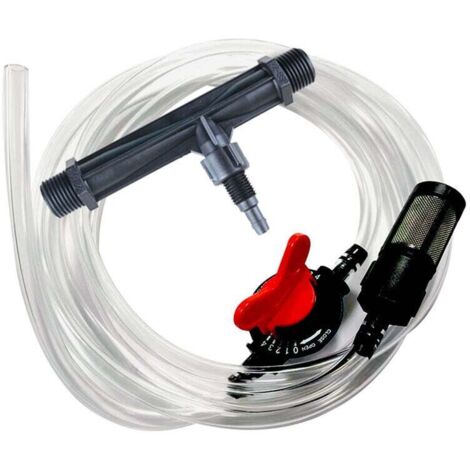

Package Includes:
1 x 3/4" Venturi Irrigation Fertilizer Injector
1 x Water Tube with Switch and Filter
