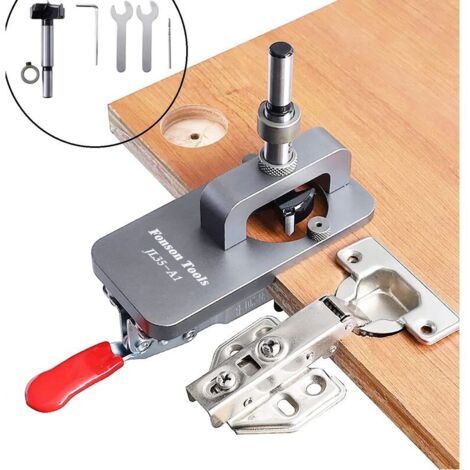

35mm hinge jig, cabinet door hinge jig, concealed hinge jig, hole punch, drill guide locator for DIY woodworking

Sale ends in 1h

-10%

~~£25.11~~

Of which environmental contribution £0.10 including VAT.

Sold by Permu UK

Product information

Description

General description

35 mm charnière gabarit, ideal for mounting concealed charnières on doors and armoires. Made in aluminum alloy, this tool is suitable for maximum durability and precision, facilitating work in the woods for DIY enthusiasts.

Technical specifications

Material: Aluminum alloy
Two diameters: 35 mm
Perçage depth: 12 to 13 mm
Size of the adjustable fix card: 15 to 25 mm
Inclus: 2 mm hole

Compatibility and accessories

Compatible with the most parts of the accessories courantes
Accessoires included: 35 mm opening, limit width, fixed view, clés et clé à barre hexagonale

Installation

Install a 35 mm rotation
Adjust the depth of the perçage to 12~13 mm and adjust the limit width
Adjust the fix size the pressure block of the rapid pince
Replace the perforator in the marking position and tighten the rapid pince
Tighten the point of the perceuse and percez just 12 to 13 mm
Percez a trou de vis de 2 mm sur les gauche et droit

Using

Utilize this tool to obtain three specific items intended for the installation of food items in different menu projects. Convenient for first-time and experienced users.

Features

Brand
XVX
Material
Aluminium
Pcs per pack
1
Colour
Black
Height
1 cm
Compatible drill
Standard drill
Weight
500 g
Type of drill accessory
Jig
ManoMano Reference
ME97432462
MMID
261664284427
Product code
XYTW-8172
EAN
6115819512485
