35mm Hinge Jig Set of Concealed Hinge Drill Bits Drilling Guide Tools for Cabinet Hinges and Mounting Plates, For Woodworking

~~£39.97~~

Of which environmental contribution £0.01 including VAT.

Sold by Sinocor GmbH

Product information

Description

General Description

The 35mm hinge template is an essential tool for installing concealed hinges in furniture. Made of high-quality ABS plastic, it allows for precise and quick drilling of hinge holes. Thanks to its ergonomic design, even amateur DIYers can easily use it to locate drilling centers.

Technical Specifications

Material: ABS
Hole Diameter: 35 mm
Size: 77 x 66 mm

Compatibility and Accessories

Compatible with various types of drills: pillar drill, pistol drill, bench drill, vertical drill, hand-held electric drill, stand-mounted motor drill, and magnetic band drill.

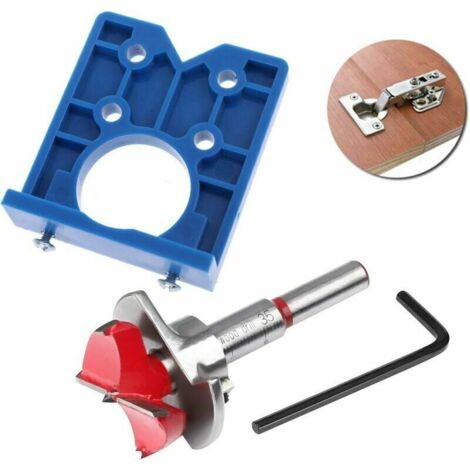

Includes: 1 x 35 mm hinge drilling jig + Forstner drill bit set.

Installation

Determine the position of the hinge cup on the board, with the short board facing upwards.
Fix the screw to the edge of the board and drill the Hinge cup hole.
Draw a center line on the other board, with the short board facing down, and align the center line with the inverted triangle to drill the positioning hole for the hinge base.
Install the hinges.

Use

This jig is ideal for positioning and installing cabinet door hinges. It makes drilling concealed hinge holes easier, allowing for a professional finish even for inexperienced users.

Features

Brand
TEHTUY
Height
1 cm
Weight
100 g
Material
Acrylonitrile butadiene styrene (ABS)
Colour
Blue
