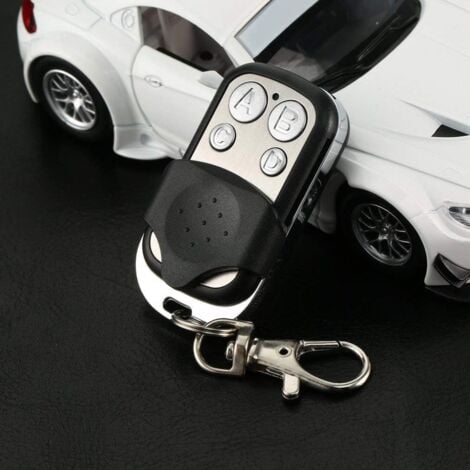

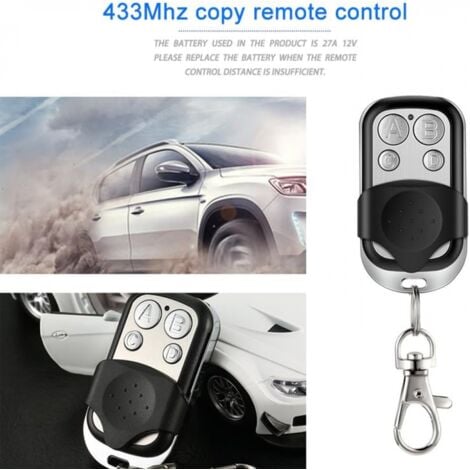

3pcs 433.92Mhz Universal Wireless Copy Remote Control Key Fob RF Transmitter for Clone Garage Door Gate Opener 433Mhz Duplicator

Excellent Design: Universal RF 433MHz wireless remote control. It is a replicator that can clone other remote controls. Strong signals can pass through walls, floors, doors, panels, etc. Open areas can be controlled within 50 meters.

Wide coding range: 2260, 2262 (such as PT2262, SC2262, HS2262, LX2262, HX2262, etc.), 1527 (EV1527, HS1527, HX1527, SC1527, GP1527, CP1527, AD1527, SCL1527, ZX152) 7) 264, PT2 240 (LX2240, LX2241, SCL2240), CS5211, SMC918, AX5026, SMC926, AX5326-3, AX5326-4, FP527, HT600, HT680, HT6207, HT6010, HT6012, HT6014, HT12D, F49E, PIC. Different manufacturing chips have different chips. model prefixes. As long as the chip is the same model.

Ease of use: Three conditions must be confirmed before purchase. ①The original remote control works normally. ②The frequency must be 433.92MHz. ③The chip code (encoder chip) is as shown in the figure. Not all remote controls can be copied. This copy remote control can only copy part of the remote control.

More flexible: There are 4 buttons on the remote control, which means you can clone 4 buttons. Each button works independently. Clone remote controls can be reset and configured without limit.

Wide Application: The products can be used in homes, farms, factories, offices, laboratories, supermarkets, etc. You can clone multiple remote controls using Copy Remote Control. Such as garage doors, electric doors, roller shutter doors, retractable doors and electric curtains, fans, lamps, lighting, ventilation devices, signal transmission, etc.

This package includes:

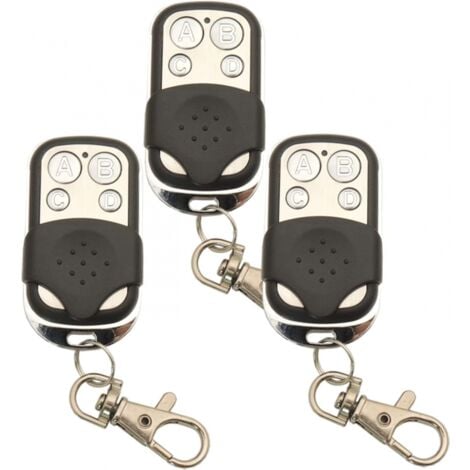

3x clone remote control

Product manual

Environment:

- RF frequency: 433 MHz

- Battery: 1x 27A 12V (included)

- Buttons: 4 keys

- Transmitter range: open space greater than 50 meters

Please confirm three conditions before purchasing.

1: The original remote control works normally.

2: Frequency: 433.92 MHz.

3: The chip code (chip encoder) is as shown below

0, HT6012, HT6013, HT6014, HT12D, HT46F49E, PIC16F630, ULN2003

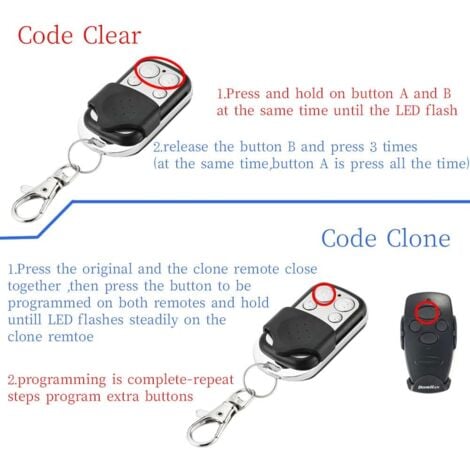

Reset:

Press and hold the "A" and "B" keys simultaneously---LED will flash 3 times. Then release the "B" key (while the "A" key is still pressed) and click the "B" key 3 times---LED will flash and then turn off. success.

Programming

1. Turn the original remote control and the cloned remote control to "back to back" position. Make sure they have a direct connection. Either the two remotes should be placed as close as possible (place the two remotes side by side on a table at zero distance).

2. Press and hold the button on the original remote, then press and hold the button on the cloned remote. Continue to hold until the LED flashes 2 times (attention: the LED flashes 2 times to avoid releasing the button) then flashes 3 times and stays on, the cloning is successful.

If for some reason the clone does not flash more than 2 times, it means the signal is not going through, slowly move the remote up and down until you reach the point where the signal is going through.
