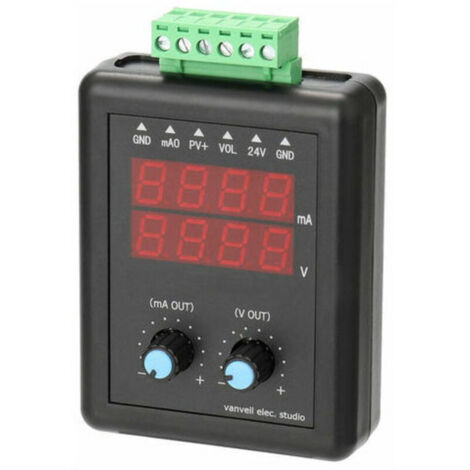

4-20mA 0-10V, 24V Signal Generator, Current and Voltage Transmitter, Constant Current and Signal Source, with Display
Of which environmental contribution £0.01 including VAT.
Sold by Sinocor GmbH
You may also like
Compare with similar items
Product information
Description
General Description
The Ulisem signal generator is a versatile device designed to provide constant current and voltage outputs. It is powered by a rechargeable lithium battery via a micro USB port, offering great flexibility of use. This generator is ideal for applications requiring precise and adjustable signals.Technical Specifications
- Active Current Output: 0-22 mA (minimum output of approximately 0.06 mA)
- Load: 0-550Ω
- Passive Current Output: 0-22 mA (minimum output of approximately 0.06 mA), external power supply up to 30V
- Voltage Output: 0V-12V (minimum output of approximately 0.05V)
- 24V Voltage Output: maximum control current of 35mA
- Operating Environment: 0°C-50°C non-condensing
- Item Size: 90 * 70 * 28 mm / 3.54 * 2.76 * 1.10 in in
- Package size: 150 * 100 * 80 mm / 5.91 * 3.94 * 3.15 in
- Package weight: 120 g / 4.23 oz
Usage
The generator allows you to adjust the current and voltage outputs using an encoder. Turning the encoder clockwise increases the output, while turning it counterclockwise decreases the output. The increments can be adjusted to 0.01 mA, 0.1 mA, 1 mA, or 10 mA for the current, and 0.01 V, 0.1 V, 1 V, or 10 V for the voltage. To correct the output values, press and hold the output encoder button for more than 2 seconds.Other Information
- When the battery is low, an indicator light will illuminate to show that it is time to recharge.
- If the generator is not used for an extended period, it is recommended to recharge the battery every 2 months to prevent damage.
Features
- BrandTEHTUY
- Length1 cm
- Width1 cm
- Height1 cm
- Power1 W
