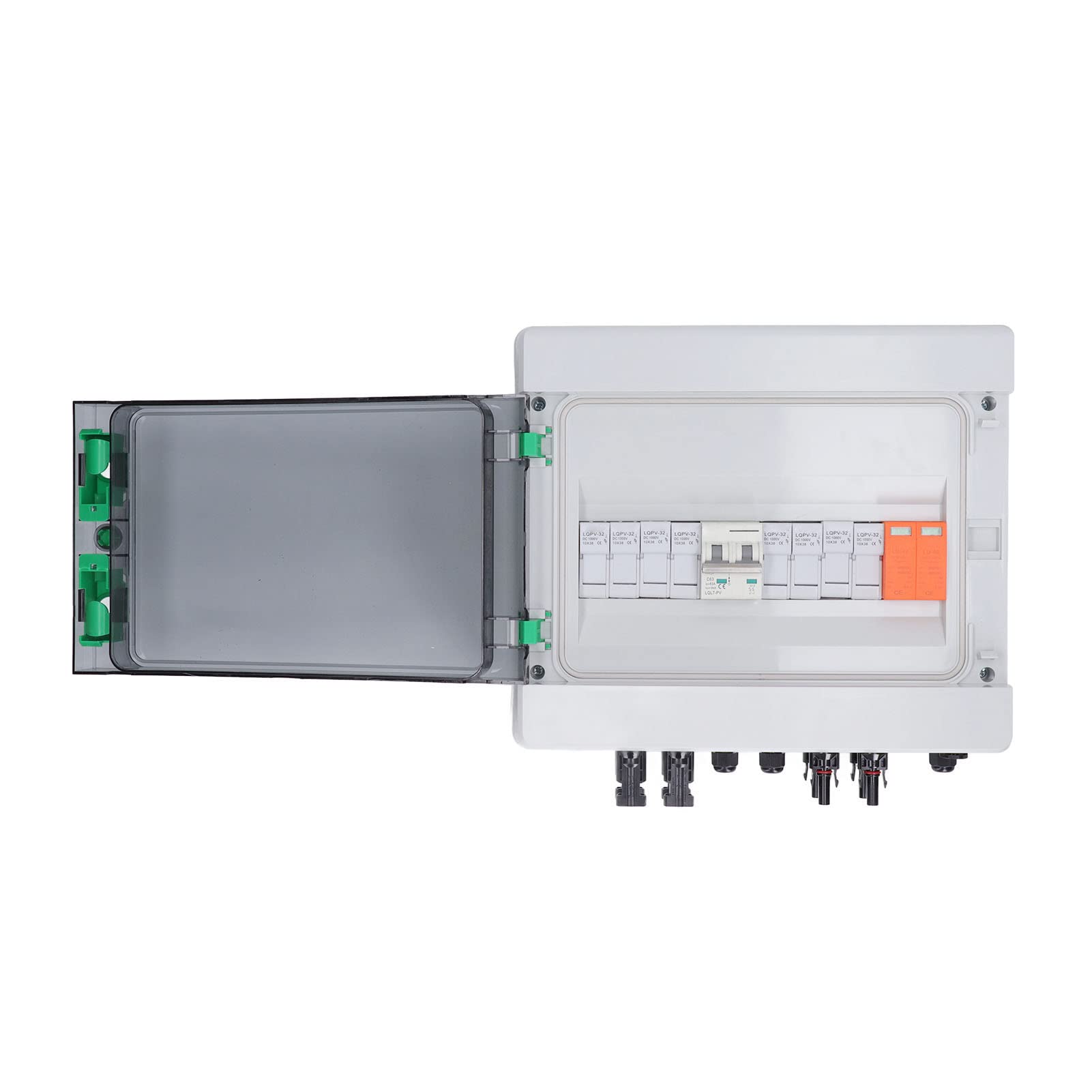

4-String PV Combiner Box, Solar Combiner Box with 15A Fuse, 63A Circuit Breaker, Lightning Surge Protector and Solar Connector, for Solar Panel System

Multifunctional: The photovoltaic combination box is applicable to your grid-connected or off-grid solar power system. This allows your solar panel system to operate reliably and safely. 63A Circuit Breaker: Equipped with a 63A circuit breaker and surge protection device, it provides short-circuit protection and controls the output of the combination box. 15A Rated Current Fuse: The PV combination box has eight separate 15A fuses. The maximum current for a single photovoltaic input circuit is 15A. Their function is overload protection.
Easy wiring: The internal wiring is safe, simple, easy to use and install, and the locking latch can secure your equipment.
Scope of application: This combination box is the perfect equipment for outdoor installation and use, suitable for RV solar systems, 12V, 24V, 36V, 48V DC photovoltaic solar power, etc.

Solar combination box, 4-wire protection for solar panels, solar panel junction box, battery box, solar panel combination box, solar junction box, solar panel accessories

Specification:
Item type: PV combination box
Material: Polycarbonate, ABS
Input: 4 channels
Output: 1 channel
Maximum voltage: 500V
/>Maximum short-circuit current (isc) of each input: 15A (replaceable)
Maximum input current: 63A
Degree of protection: IP65
Impact resistance: IK10
Product size: approx. 300 x 260 x 140 mm / 11.81 x 10.24 x 5.51 inches (excluding protrusions)
Cable input: PG09 2.5 x 6 mm, 2.5 x 6 mm
Output: PG21 2.5 x 6 mm, 2.5 x 6 mm
DC disconnect switch: LQL7 PV 63A
Rated insulation voltage (Ui): 500V
Rated current (Le): 63A
DC arrester: LD 40
Maximum operating voltage (Ucpv): 500V
Maximum discharge current: 40kA
DC fuse holder: LQPV 1000VDC
Rated operating voltage: 500V

Package List:
1x PV Combination Box
1x Manual
1x Ground Wire
1x Key
4 x Screws
4 x Expansion Tubes
4 x Connectors (Male x 2, Female x 2)
4 x
