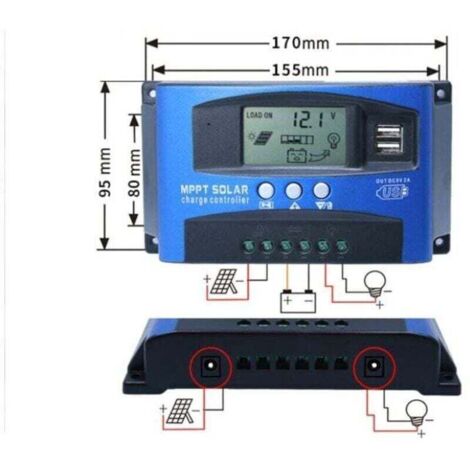

40A Solar Charge Controller, 12V 24V USB Solar Panel Battery Controller Intelligent Battery Regulator with LCD Screen (40A)

General Description The 40A solar charge controller is an essential device for optimizing solar energy use. Equipped with an industrial-grade main control chip, it guarantees 16-level AD sampling accuracy, enabling real-time display of temperature, charging current, and discharging current. Its three-stage charge management ensures effective battery protection, thus extending its lifespan. Technical Specifications AD Sampling Accuracy: 16 levels Tracking Efficiency: Up to 99.9% Energy Conversion Efficiency: 98% Display: Large LCD screen with adjustable parameters Protection Modes: Overheating, overcurrent, short circuit, open circuit, reverse connection Compatibility and Accessories Compatible with various battery types, the controller can be adjusted to meet the specific characteristics of each battery. It is recommended to use solar panels that meet the controller's specifications. Installation: For optimal installation, follow these steps: First, connect the battery, then the solar panel. Install the controller in a location away from humid and high-temperature environments. Avoid flammable and explosive materials nearby. Operation: The controller is designed to continuously detect the load and automatically adjust settings to ensure maximum efficiency. Be sure to position the controller in a well-ventilated area and do not cover it during use. Other information: It is important to keep the controller away from extreme conditions and not to install it in a vehicle to avoid the risk of overheating.
