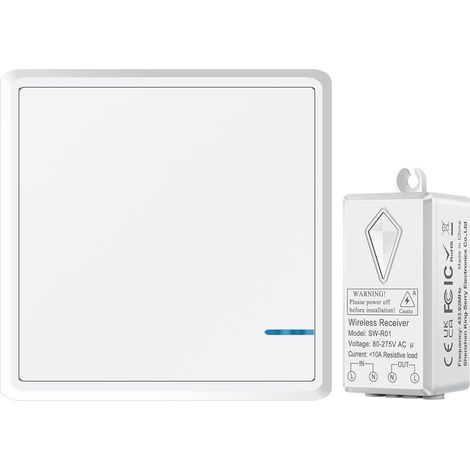

433 MHz radio remote control switch – 30 A, compatible with 110/220/240 V AC for lighting, pumps, household appliances and irrigation

General Description

High-performance, 433 MHz wireless remote control switch for controlling electrical devices such as lamps, water pumps, and other household appliances. The device offers a maximum range of 50 meters (164 feet) without obstructions, allowing for reliable control from any location. It is easy to set up and reset and features three operating modes: momentary, toggle, and hold.

Technical Data

• Operating Voltage: AC 85V ~ 265V
• Maximum Current: 30A
• HF Frequency: 433 MHz
• Supported Coding: 1527 Learning Code
• Receive Sensitivity: >97 dBm
• HF Operating Mode: ASK Superheterodyne Radio Reception
• Operating Temperature: -30°C ~ +80°C
• Receive Range: Over 50 meters outdoors
• Standby Current: <5 mA

Compatibility & Accessories

Each receiver can store approximately 20 transmitters, and one transmitter can control multiple receivers if they are paired. Correct.

Installation

• Press the learn button on the receiver 3 times.
• Wait 3 seconds.
• Press the ON button on the remote control.
• Wait 3 seconds.
• Press the OFF button on the remote control.
• Installation complete.

Usage

Control all devices connected to the receiver with the remote control, e.g. B.: Lamps, pumps, wireless alarm systems, fans, ventilation systems, monitors, printers, fountains and other household appliances.
