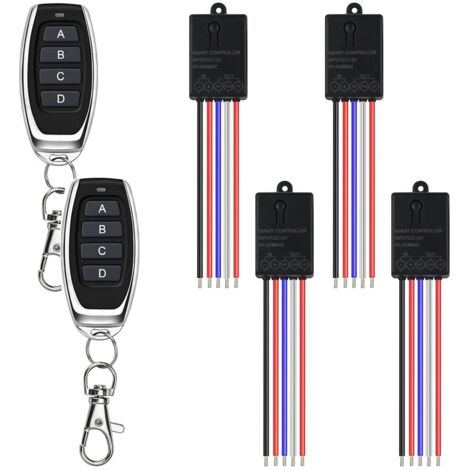

433 MHz RF Wireless Remote Control Switch, 12 V Wireless Lighting Switch, 5 V/12 V/24 V DC 10 A Relay Receiver with 4 Transmitters, 100 m Range, 4-Way Remote Switch for Motors, LED Lights, Gates and D

433 MHz radio frequency, stable signal: 433 MHz radio frequency repeater with remote control. Stable and reliable performance thanks to high reception sensitivity (> 97 dBm). The strong signal penetrates walls, floors, doors, panels, etc. Open field range up to 100 m. You can remotely control any device connected to the repeater receiver. Multiple modes: 1. Momentary mode: A single press of the button activates or deactivates the repeater. 2. Toggle mode: One press activates the repeater; two presses deactivate it. 3. Latching mode: One press of button A activates the repeater; one press of button B deactivates it. 4. Timer mode: One press activates the repeater; releasing the button automatically deactivates it after 5, 10, 15, or 20 seconds. Erase and reset function: After 9 presses of the receiver's learning button, all remote control data is erased from its memory. The LED flashes 5 times to indicate that the erasure is complete. Once the code is erased from the receiver, all remote controls must be relearned by it to function correctly. NOTE: The system can store 20 remote controls. Compact size, high flexibility: This relay fits easily into tight spaces such as canopies, junction boxes, or electrical cabinets. The receiver kit measures 2.2 x 4 x 2.5 cm. It features a safety receiver that operates over a wide voltage range (5V to 24V DC), allowing it to work with 5V, 12V, and 24V systems. The maximum current is 10A. Two wiring terminals simplify connection. (The default mode is toggle mode. You can reset it and relearn the code.) Easy installation, numerous applications: No application or configuration is required. Simply connect the receiver between the devices to be controlled and the power supply. You can turn your device on and off remotely using the remote control panel. This low-power mini wireless receiver allows you to remotely control water pumps, motors, lamps, fans, automotive equipment, wireless security alarms, video systems, and more.

Strong Signal

The 433 MHz radio frequency signal is effective and passes through walls, floors, and doors without obstruction. With a range of 100 m, you can turn the device on and off from any location.

Low Power Consumption

This low-power security receiver (10 A) is compatible with a wide voltage range of 5 V to 24 V DC. It therefore works perfectly with 5 V, 12 V, and 24 V voltages. Ideal for DIY projects.

Compact Size, Easy Installation

Compact and easy to conceal, it simplifies your daily life. Remote control is achieved via simple wiring. No Wi-Fi, no app, no configuration required.

More flexibility

The 4 independent relay channels can operate together or separately. Each relay has 5 terminals (normally open, common, normally closed, positive power supply, negative power supply).

Wide range of applications

Wireless remote controls are used in a wide range of applications, from simple household remote controls to home automation functions such as electric blinds, garage doors, motors, LEDs, alarm systems, lighting, etc.

Specifications:

Input Voltage: 5 V DC – 24 V DC

Output Voltage: 5 V DC – 24 V DC

Maximum Current: 10 A

RF Frequency: 433 MHz

Receiving Sensitivity: > 97 dBm

Range: 100 m

Decoding Mode: Microcontroller Software Decoding

Remote Control Memory: 20

Multiple Modes: Momentary Mode, Toggle Mode, Latching Mode, Time Delay Mode, Auto Reactivation on Power-Up Type: Wired Code Type: Code Learning Factory Setting: Toggle Mode Operating Temperature: -20 °C to 80 °C NOTE: The system can store 20 remote controls. If more than 20 remote controls are programmed, the original remote control will be lost. Package contents: 2 remote controls, 4 relays, 1 user manual
