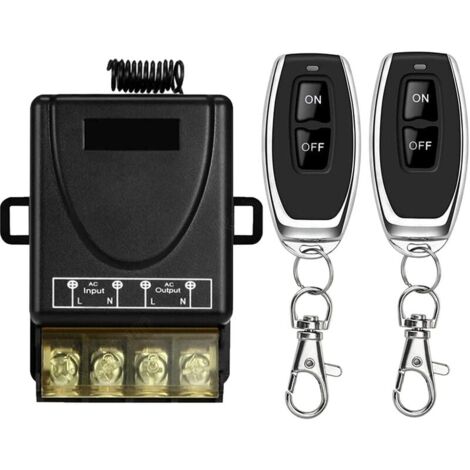

433Mhz High Power Wireless Remote Control Switch AC 220V/240V/110V 30A RF Remote Control

~~£31.23~~

Of which environmental contribution £0.10 including VAT.

Sold by A10 ROOFING (LONDON) LIMITED

Product information

Description

General description

433Mhz High Power Wireless Remote Control Switch is designed for reliable and stable performance. It operates at a frequency of 433MHz and features a strong signal that can penetrate walls, floors, and doors, allowing control from a distance of up to 164 feet without obstacles. The switch is easy to set up and reset, with three selectable working modes: momentary, toggle, and latched. It is capable of controlling large-power electrical appliances with a maximum load of 30A.

Technical specifications

Voltage: AC 85V~265V

Max Current: 30A

RF Frequency: 433MHz

Support Encoding: 1527 Learning Code

Receiving Sensitivity: -105dBm

RF Working Mode: ASK Superheterodyne

Working Temperature: -30~+80°C

Receiving Range: More than 50 meters in open space

Quiescent Current: 5mA

Installation

Press the learning button on the receiver 3 times.

Wait for 3 seconds.

Press the ON button on the remote control.

Press the OFF button on the remote control.

Success.

Usage

The remote control can operate various devices connected to the relay receiver, including lights, pumps, wireless security alarms, fans, ventilation devices, monitors, printers, fountains, and other electrical equipment. Each receiver can store about 20 transmitters, and one transmitter can control multiple receivers, provided they are matched correctly.

Features

Brand
CYSLMUK
Length
10 cm
Width
4.2 cm
Height
10 cm
Weight
400 g
